+Vcc +Vcc R2 Rc Vcc = 15 V B = 180 Rs C1 VBE(on) = 0.6 V Vin C2 ន C = C = 0 Vout Rs = 4.7 kΩ R1 RE R -Vec

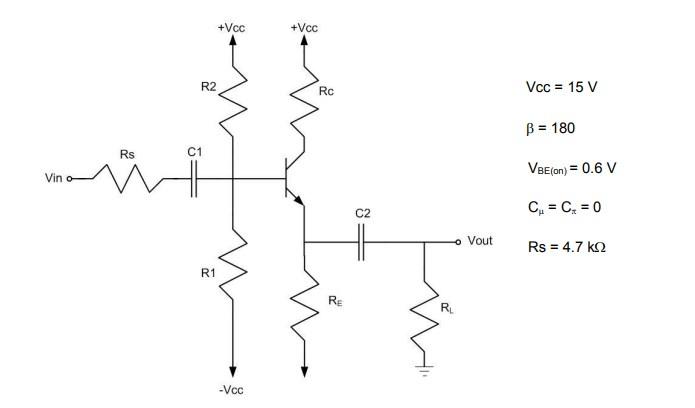

Design this emitter tracker floor accordingly. It must
comply with the following rules:
1) Each resistor cannot consume more than 0.2
Watts. You can use parallel resistors. For example, if
you implement a 1 k ohm resistor that consumes 0.4 W with parallel
2 k ohm resistors, it will drop 0.2 W per resistor.
2) Design the corner frequencies of capacitors C1 and C2 to
10 Hz.
3) Calculate Rin and Rout.
4) Add a suitable capacitor with a high threshold
frequency of 40 kHz
5) Calculate the open circuit voltage gain.
6) Plot the frequency response.
7) Simulate your circuit.
+Vcc +Vcc R2 Rc Vcc = 15 V B = 180 Rs C1 VBE(on) = 0.6 V Vin C2 ន C = C = 0 Vout Rs = 4.7 kΩ R1 RE R -Vec
