In Fig. Q1, bus 1 is the slack bus with V = 1.02/0° pu. Assuming the initial voltage at the load bus to be 1.0/0°pu and

[answerhappygod]

In Fig Q1 Bus 1 Is The Slack Bus With V 1 02 0 Pu Assuming The Initial Voltage At The Load Bus To Be 1 0 0 Pu And 1 (39.47 KiB) Viewed 36 times

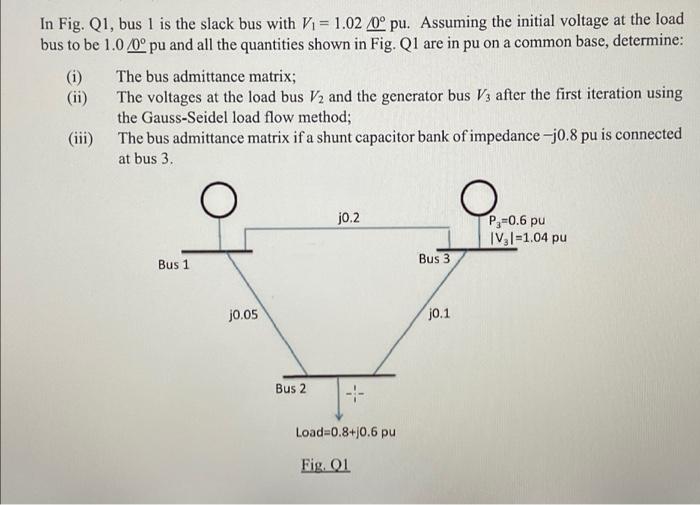

In Fig. Q1, bus 1 is the slack bus with V = 1.02/0° pu. Assuming the initial voltage at the load bus to be 1.0/0°pu and all the quantities shown in Fig. Q1 are in pu on a common base, determine: (i) The bus admittance matrix; (ii) The voltages at the load bus V2 and the generator bus V3 after the first iteration using the Gauss-Seidel load flow method; (iii) The bus admittance matrix if a shunt capacitor bank of impedance -j0.8 pu is connected at bus 3. O j0.2 Py=0.6 pu TV1=1,04 pu Bus 1 Bus 3 20.05 j0.1 Bus 2 Load=0.8+10.6 pu Fig. 21
