2. A full wave rectifier is using a center tapped step down transformer. The input to the primary of the
transformer is 110 volts rms and the turns ratio of the transformer (N1:N2) is 5:1. Load resistance (RL) is
3,900 ohms. No capacitor is connected at the output of the rectifier. Determine the following.
a. Peak voltage at the primary
b. Average voltage at the primary
c. Peak voltage at the whole secondary and peak voltage at ½ of secondary
d. RMS voltage at the whole secondary and rms voltage at ½ of secondary
e. Average voltage at the whole secondary and average voltage at ½ of secondary
f. Peak voltage at the output of the rectifier (across RL)
g. RMS voltage at the output of the rectifier (across RL)
h. Average voltage at the output of the rectifier (across RL)
i. Peak current at the load
j. RMS current at the load
k. Average current at the load
l. Minimum PIV of the diode without capacitor
m. Minimum PIV of the diode if a filter capacitor is added

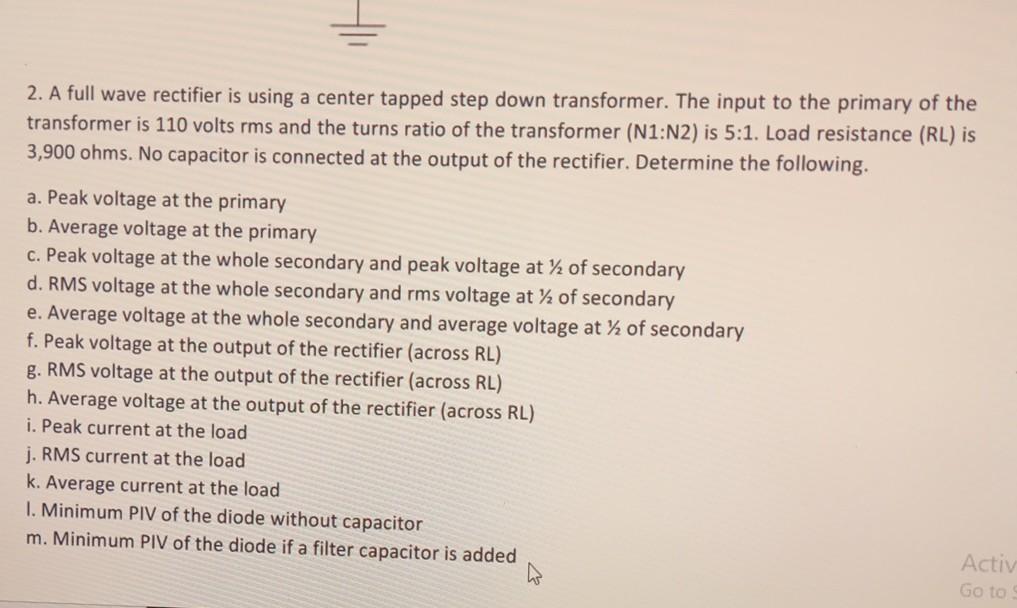

- 2 A Full Wave Rectifier Is Using A Center Tapped Step Down Transformer The Input To The Primary Of The Transformer Is 1 (68.68 KiB) Viewed 27 times
