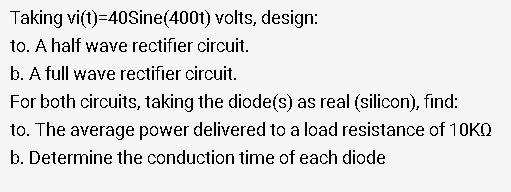

Taking vi(t)=40Sine(400t) volts, design:
to. A half wave rectifier circuit.
b. A full wave rectifier circuit.
For both circuits, taking the diode(s) as real (silicon),
find:
to. The average power delivered to a load resistance of 10KΩ
b. Determine the conduction time of each diode
Taking Vi T 40sine 400t Volts Design To A Half Wave Rectifier Circuit B A Full Wave Rectifier Circuit For Both C 1 (22.79 KiB) Viewed 30 times
Taking vi(t)=40Sine(400t) volts, design: to. A half wave rectifier circuit. b. A full wave rectifier circuit. For both circuits, taking the diode(s) as real (silicon), find: to. The average power delivered to a load resistance of 10KO b. Determine the conduction time of each diode
