Unit Rating Speed Regulation R (pu on unit MVA base) 1 800 MVA 4 % 2 400 MVA 5 % The units are operating in parallel, sh

[answerhappygod]

Unit Rating Speed Regulation R Pu On Unit Mva Base 1 800 Mva 4 2 400 Mva 5 The Units Are Operating In Parallel Sh 1 (88.78 KiB) Viewed 32 times

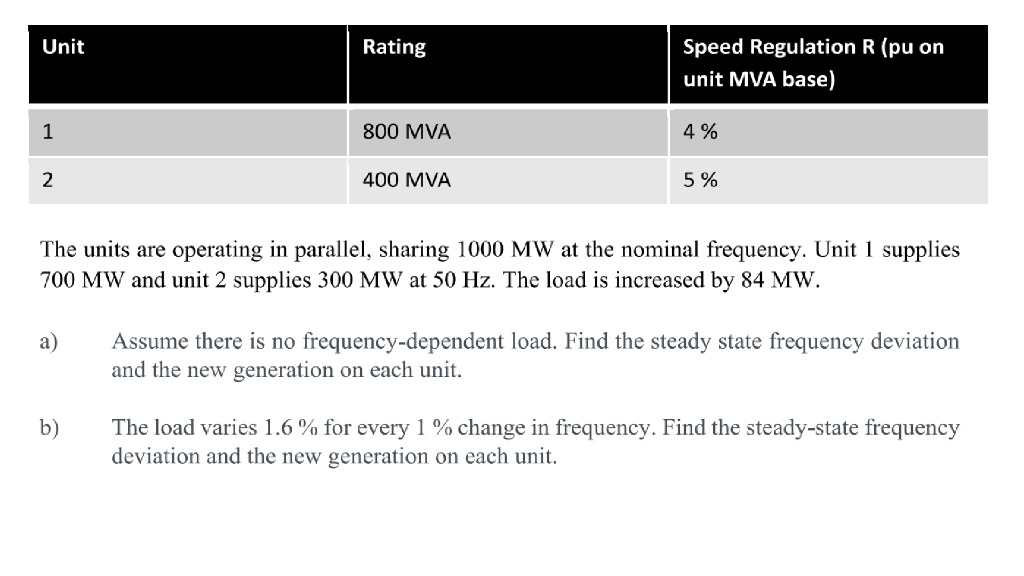

Unit Rating Speed Regulation R (pu on unit MVA base) 1 800 MVA 4 % 2 400 MVA 5 % The units are operating in parallel, sharing 1000 MW at the nominal frequency. Unit 1 supplies 700 MW and unit 2 supplies 300 MW at 50 Hz. The load is increased by 84 MW. a) Assume there is no frequency-dependent load. Find the steady state frequency deviation and the new generation on each unit. b) The load varies 1.6% for every 1 % change in frequency. Find the steady-state frequency deviation and the new generation on each unit.
