P3) ) Using a truth-table, briefly describe the operation of this flip-flop. SETO 101 CL CL DATA CL Ý RESETO control con

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

P3) ) Using a truth-table, briefly describe the operation of this flip-flop. SETO 101 CL CL DATA CL Ý RESETO control con

Post by answerhappygod »

P3 Using A Truth Table Briefly Describe The Operation Of This Flip Flop Seto 101 Cl Cl Data Cl Y Reseto Control Con 1
P3 Using A Truth Table Briefly Describe The Operation Of This Flip Flop Seto 101 Cl Cl Data Cl Y Reseto Control Con 1 (59.63 KiB) Viewed 38 times

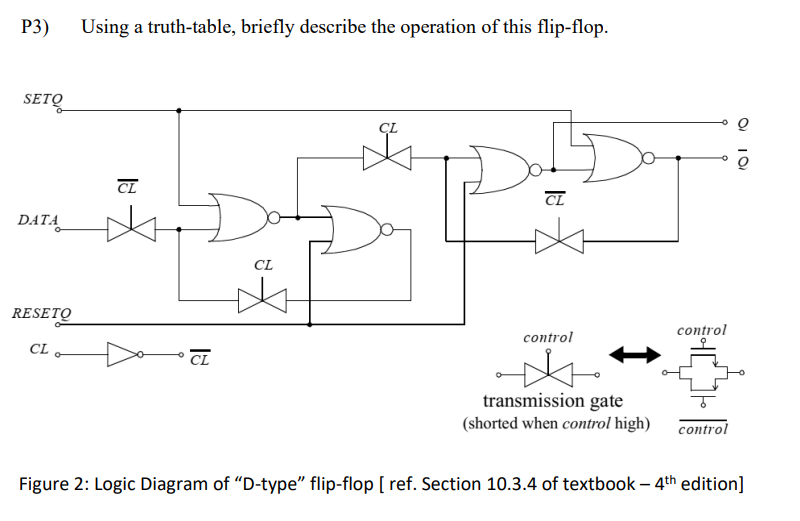

P3) ) Using a truth-table, briefly describe the operation of this flip-flop. SETO 101 CL CL DATA CL Ý RESETO control control CL CL transmission gate (shorted when control high) control Figure 2: Logic Diagram of “D-type” flip-flop (ref. Section 10.3.4 of textbook – 4th edition]
