(6) (8 points) The circuit below is in steady state. (a) Sketch the phasor of ia (make sure the magnitude and phase are

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

(6) (8 points) The circuit below is in steady state. (a) Sketch the phasor of ia (make sure the magnitude and phase are

Post by answerhappygod »

6 8 Points The Circuit Below Is In Steady State A Sketch The Phasor Of Ia Make Sure The Magnitude And Phase Are 1
6 8 Points The Circuit Below Is In Steady State A Sketch The Phasor Of Ia Make Sure The Magnitude And Phase Are 1 (105.78 KiB) Viewed 31 times

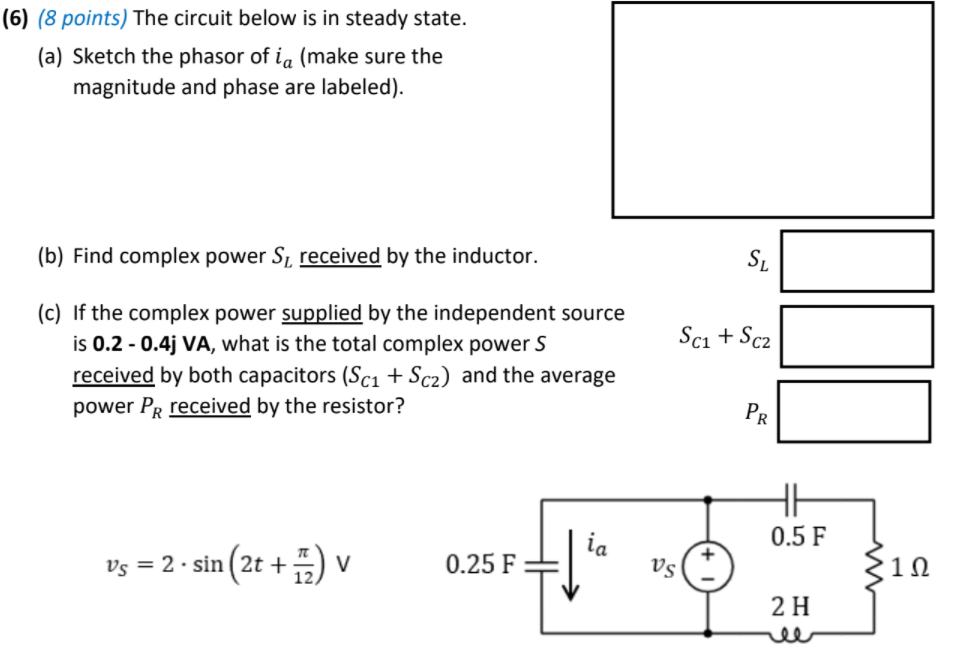

(6) (8 points) The circuit below is in steady state. (a) Sketch the phasor of ia (make sure the magnitude and phase are labeled). (b) Find complex power Sy received by the inductor. SL Sci + Sc2 (c) If the complex power supplied by the independent source is 0.2 - 0.40 VA, what is the total complex powers received by both capacitors (Sci + Sc2) and the average power Pr received by the resistor? PR ia 0.5 F vs = 2 · sin (2t + 1) v 0.25 F + 1 Vs 112 2 H
