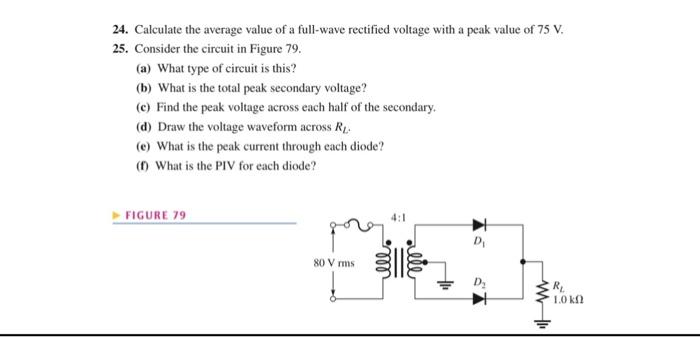

24. Calculate the average value of a full-wave rectified voltage with a peak value of 75 V. 25. Consider the circuit in
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
24. Calculate the average value of a full-wave rectified voltage with a peak value of 75 V. 25. Consider the circuit in
24. Calculate the average value of a full-wave rectified voltage with a peak value of 75 V. 25. Consider the circuit in Figure 79. (a) What type of circuit is this? (b) What is the total peak secondary voltage? (e) Find the peak voltage across each half of the secondary. (d) Draw the voltage waveform across Re (e) What is the peak current through each diode? ( What is the PIV for each diode? FIGURE 79 Di 80 Vrms W ST RE 1.Ο ΚΩ
