3) The circuit shown in Fig. 3 operates at steady-state conditions. The initial voltage of the capacitor is zero, wherea

Post by answerhappygod »

3 The Circuit Shown In Fig 3 Operates At Steady State Conditions The Initial Voltage Of The Capacitor Is Zero Wherea 1
3 The Circuit Shown In Fig 3 Operates At Steady State Conditions The Initial Voltage Of The Capacitor Is Zero Wherea 1 (34.89 KiB) Viewed 49 times

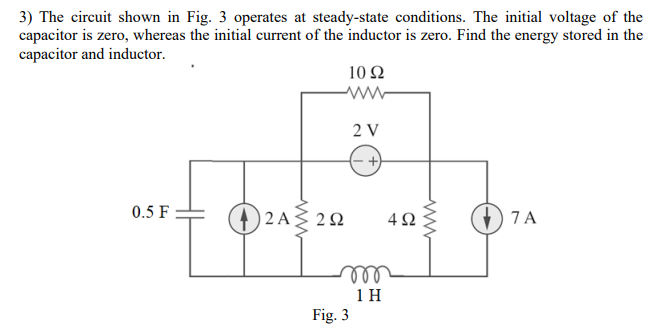

3) The circuit shown in Fig. 3 operates at steady-state conditions. The initial voltage of the capacitor is zero, whereas the initial current of the inductor is zero. Find the energy stored in the capacitor and inductor. 1022 w 2 V w 0.5 F (1) 2A3 2 Ω Ω 492 D 7A 20 1 H Fig. 3
