Problem 05: (a) Find the instantaneous current iſt) equations, if the voltage v(t) = 100sin(120nt + 60°) V is applied th

[answerhappygod]

Problem 05 A Find The Instantaneous Current Ist Equations If The Voltage V T 100sin 120nt 60 V Is Applied Th 1 (38.4 KiB) Viewed 55 times

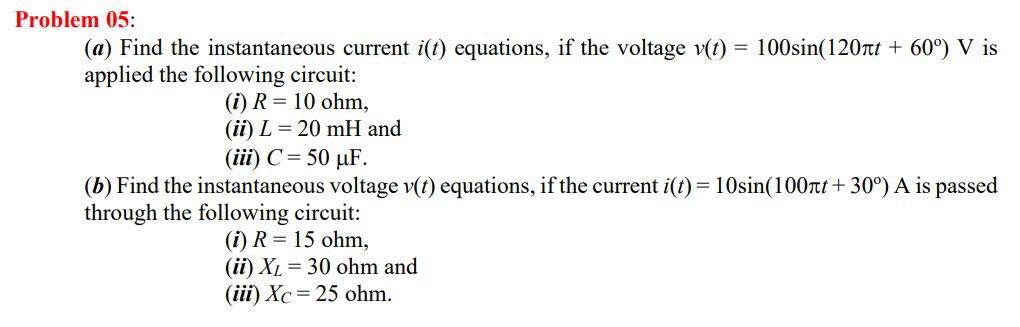

Problem 05: (a) Find the instantaneous current iſt) equations, if the voltage v(t) = 100sin(120nt + 60°) V is applied the following circuit: (i) R= 10 ohm, (ii) L = 20 mH and (iii) C = 50 uF. (b) Find the instantaneous voltage v(t) equations, if the current i(t)= 10sin(100nt +30°) A is passed through the following circuit: (i) R = 15 ohm, (ii) XL = 30 ohm and (iii) Xc = 25 ohm.
