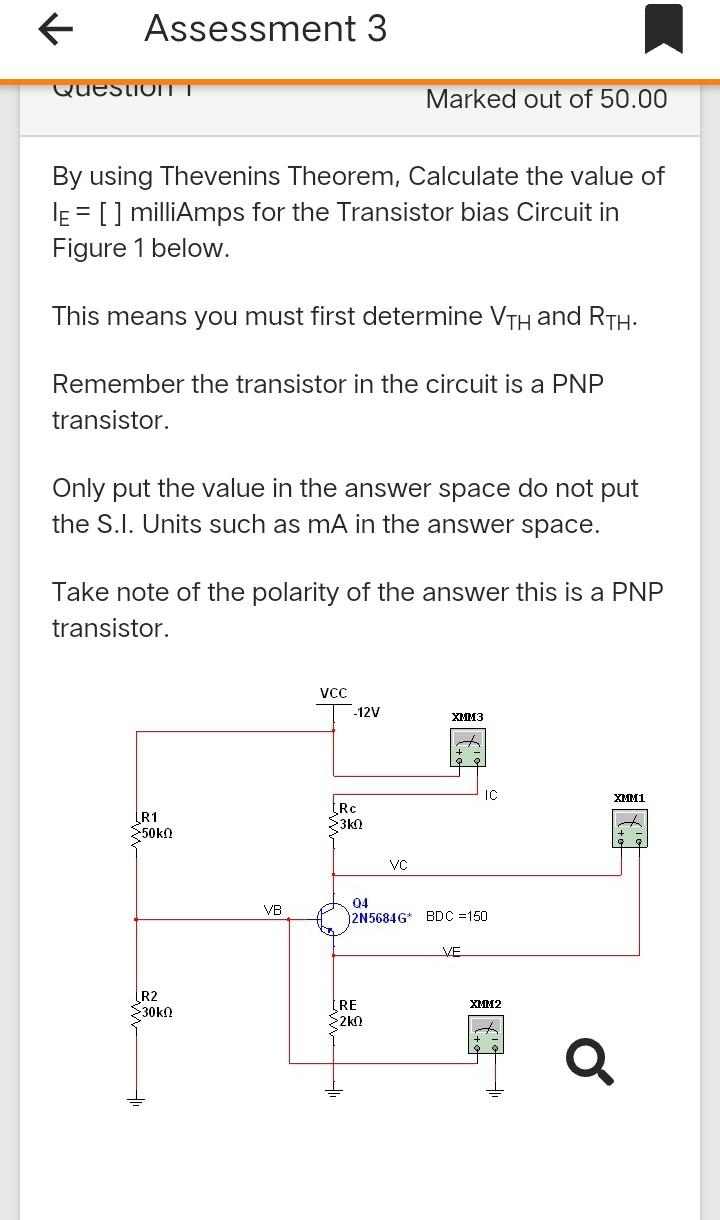

- F Assessment 3 Quesliuilt Marked Out Of 50 00 By Using Thevenins Theorem Calculate The Value Of Le Milliamps For 1 (85.8 KiB) Viewed 44 times
f Assessment 3 QueSLIUILT Marked out of 50.00 By using Thevenins Theorem, Calculate the value of le = [ ] milliAmps for the Transistor bias Circuit in Figure 1 below. This means you must first determine VTH and RTH. Remember the transistor in the circuit is a PNP transistor Only put the value in the answer space do not put the S.I. Units such as mA in the answer space. Take note of the polarity of the answer this is a PNP transistor. VCC -12V XMM3 IC XMM1 R1 50kΩ Rc 3k) VC VB 04 )2N5684G* BDC =150 VE R2 30kΩ XMM2 RE 2k0 Q 1H
