pass filter. Q14i. Show that the circuit of fig. I will realize a band 11. Hence, realize the function 150s H(s) = s+ +

[answerhappygod]

Pass Filter Q14i Show That The Circuit Of Fig I Will Realize A Band 11 Hence Realize The Function 150s H S S 1 (217.93 KiB) Viewed 41 times

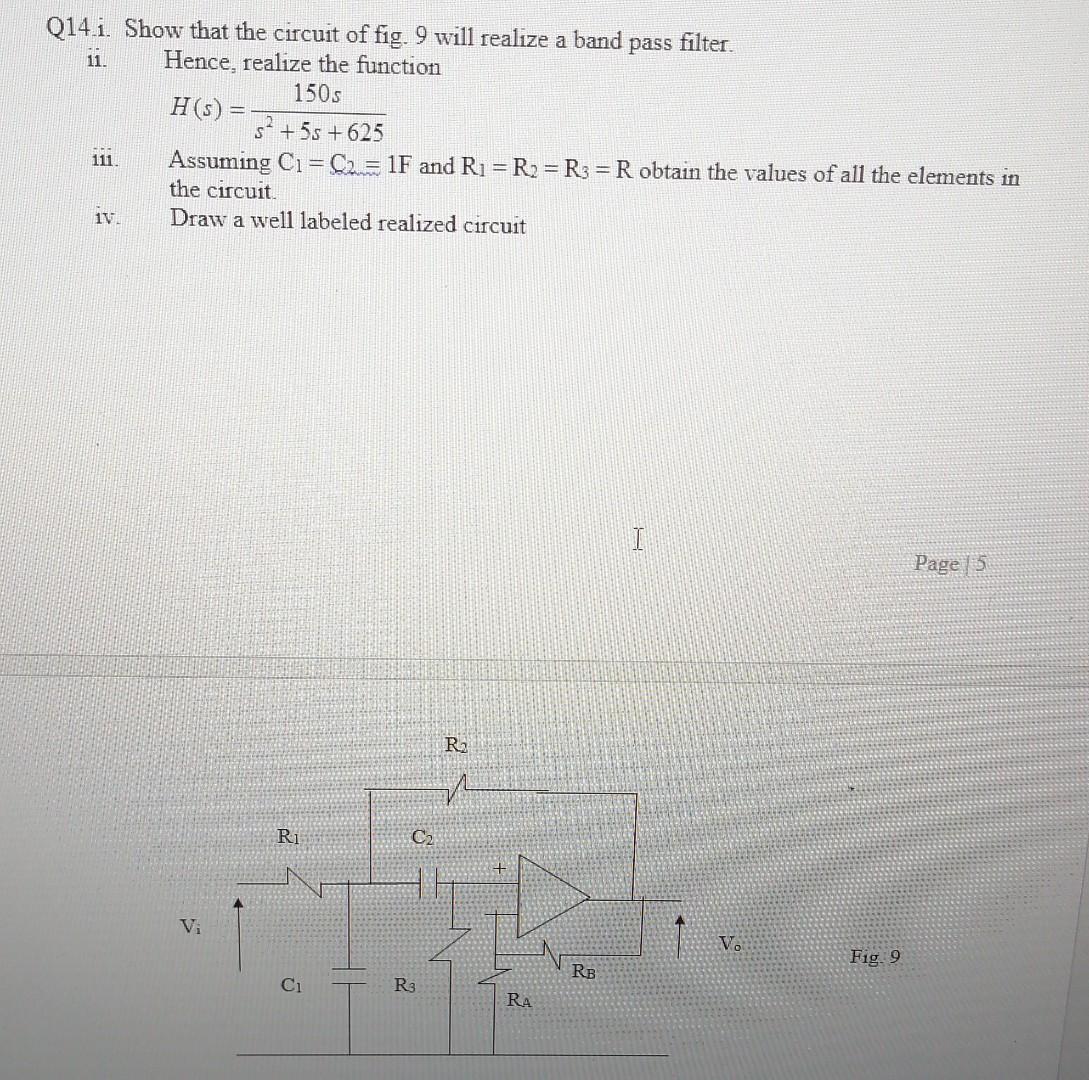

pass filter. Q14i. Show that the circuit of fig. I will realize a band 11. Hence, realize the function 150s H(s) = s+ + 5s +625 111 Assuming Ci=C2 = 1F and Ri = R2 = R3 = R obtain the values of all the elements in the circuit 1V Draw a well labeled realized circuit I Page 5 R Ri C2 Vi V. Fig. 9 RB Ci R3 RA
