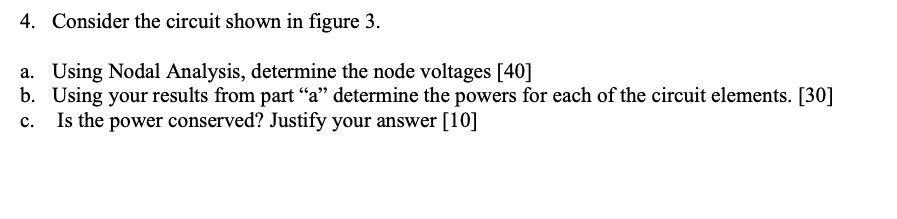

4. Consider the circuit shown in figure 3. a. Using Nodal Analysis, determine the node voltages [40] b. Using your results from part “a” determine the powers for each of the circuit elements. [30] Is the power conserved? Justify your answer [10] c.

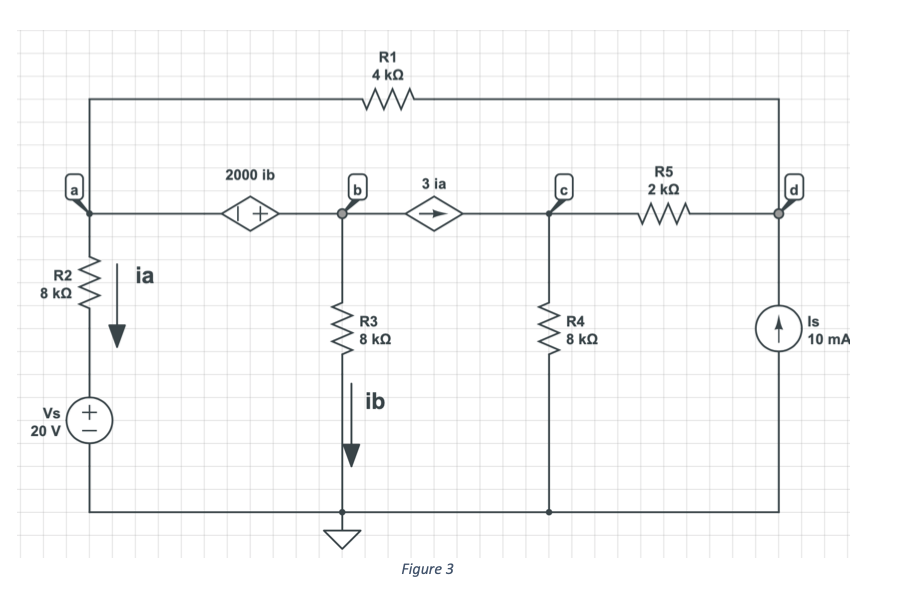

R1 4 ΚΩ w 2000 ib 3 ia R5 2 ΚΩ 4 R2 8 ΚΩ } ia w R3 8 ΚΩ Λ R4 8 ΚΩ (1) Is 10 mA ib Vs+ 20 V Figure 3
