the following values: Vs = 9 V, R1 =
330 Ω, R2 = 1 kΩ, R3 = 470 Ω, and R4= 220 Ω.
Calculate total resistance, total current, currents and voltages
for all resistors of the circuit using
various circuit analysis laws and rules such as Ohm’s Law,
Kirchhoff’s Voltage Law (KVL),
Kirchhoff’s Current Law (KCL), Voltage Divider Rule (VDR), and
Current Divider Rule (CDR).
Please show the general equation, substitute numerical values, then
write down the answers. You need
to type this information using MS-Word Equation.

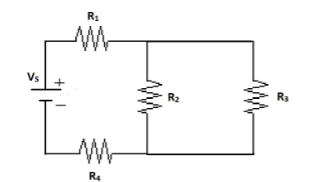

- Perform Hand Calculation On The Series Circuit Shown Below With The Following Values Vs 9 V R1 330 Ohm R2 1 Kohm R 1 (9.57 KiB) Viewed 21 times
Construct the above circuit on the protoboard using the same
voltage source value and resistor values
as before (Vs = 9 V, R1 = 330 Ω, R2 = 1 kΩ, R3 = 470 Ω, and R4= 220
Ω). Find the current for I1,I2,I3,I4 Find the voltage for
V1,V2,V3,V4
R1 Vs R3 Ľ M R4
