By using Thevenins Theorem, Calculate the value of le = [ ] milliAmps for the Transistor bias Circuit in Figure 1 below.

[answerhappygod]

By Using Thevenins Theorem Calculate The Value Of Le Milliamps For The Transistor Bias Circuit In Figure 1 Below 1 (74.74 KiB) Viewed 31 times

Electronic 2

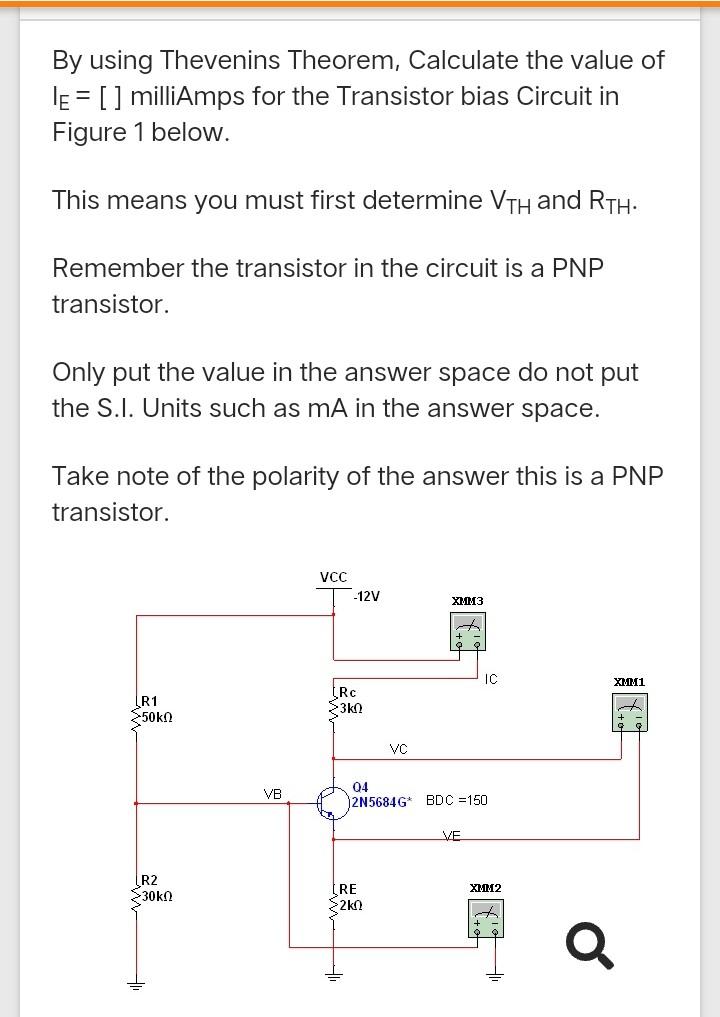

By using Thevenins Theorem, Calculate the value of le = [ ] milliAmps for the Transistor bias Circuit in Figure 1 below. This means you must first determine Vth and RTH. Remember the transistor in the circuit is a PNP transistor. Only put the value in the answer space do not put the S.I. Units such as mA in the answer space. Take note of the polarity of the answer this is a PNP transistor. VCC -12V XMM3 IC XMM1 R1 5050 [Rc ২3k VC VB 04 2N5684GBDC =150 VE R2 30k XMM2 RE $250
