Please Answer Fast 1 What Is The Voltage In V At Node 1 2 What Is The Voltage In V At Node 2 3 What Is The Outp 1 (16.63 KiB) Viewed 19 times
1. What is the voltage (in V) at node 1?
2. What is the voltage (in V) at node 2?
3. What is the output voltage (in V) of the op amp?
4. What is the effective gain of this op amp circuit?
5. How much power (in mW) is delivered to the 20k ohm load?

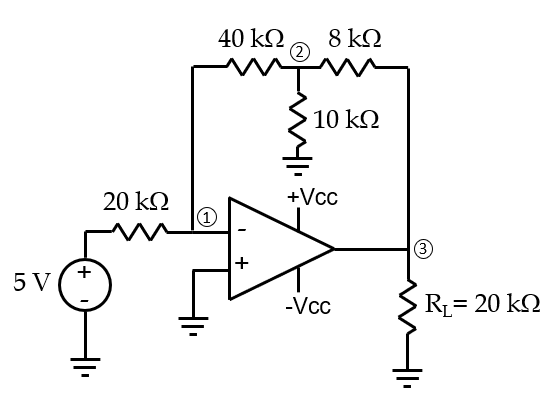

40 ΚΩ 8 ΚΩ 10 kΩ 20 kΩ + VCC 1 3 + + 5V -Vcc RI = 20 kΩ =
