Hello, I have been stuck on this question, above if I can get
that will be great.

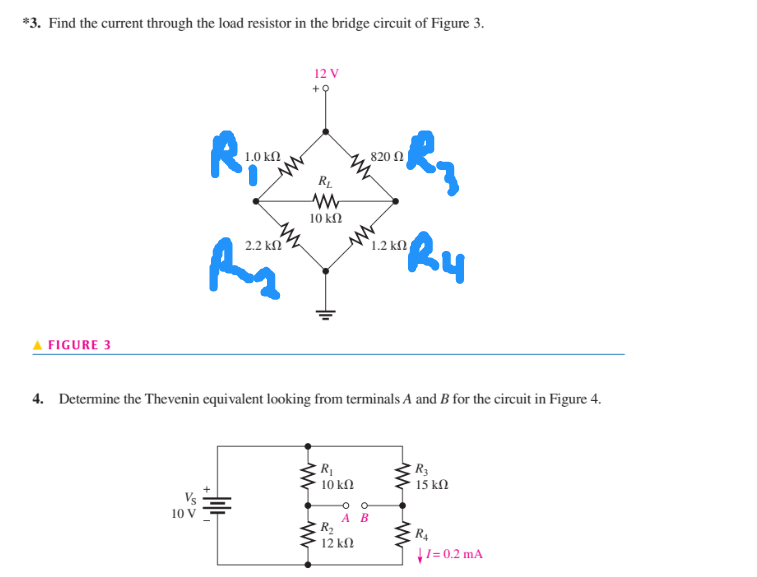

*3. Find the current through the load resistor in the bridge circuit of Figure 3. 12 V + R 1.0 ΚΩ. 820 Ω, R RL w 10 ΚΩ 2.2 ΚΩ w 1.2 ΚΩ R Roma FIGURE 3 4. Determine the Thevenin equivalent looking from terminals A and B for the circuit in Figure 4. R 10 ΚΩ w R3 15 k2 = WW 10 А В R 12 ΚΩ W R4 1 = 0.2 mA
