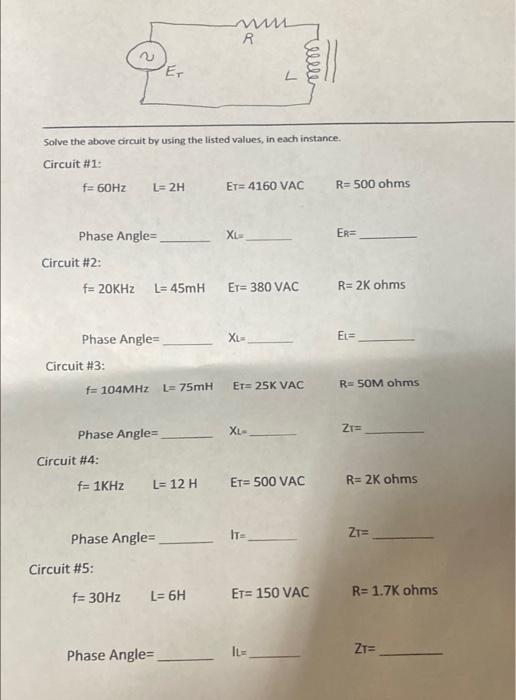

M R Er Welle Solve the above circuit by using the listed values, in each instance, Circuit #1: f=60Hz L=2H ET= 4160 VAC

[answerhappygod]

M R Er Welle Solve The Above Circuit By Using The Listed Values In Each Instance Circuit 1 F 60hz L 2h Et 4160 Vac 1 (33.3 KiB) Viewed 19 times

M R Er Welle Solve the above circuit by using the listed values, in each instance, Circuit #1: f=60Hz L=2H ET= 4160 VAC R= 500 ohms Phase Angle XL ER= Circuit #2: f= 20KHZ L= 45mH ET= 380 VAC R= 2K ohms XL Ec= Phase Angle Circuit #3: f=104MHZ L=75mH ET= 25K VAC R. SOM ohms XL- ZI= Phase Angle= Circuit #4: f= 1KHz L=12H ET= 500 VAC R= 2K ohms Phase Angler ITE ZT= Circuit #5: f= 30Hz L=6H ET= 150 VAC R= 1.7K ohms Phase Angle ZT=
