Exercise no. 1 For the circuit below, compute: • the power P. delivered to the load Z; • the amplitude of the voltage |V

[answerhappygod]

Exercise No 1 For The Circuit Below Compute The Power P Delivered To The Load Z The Amplitude Of The Voltage V 1 (27.4 KiB) Viewed 17 times

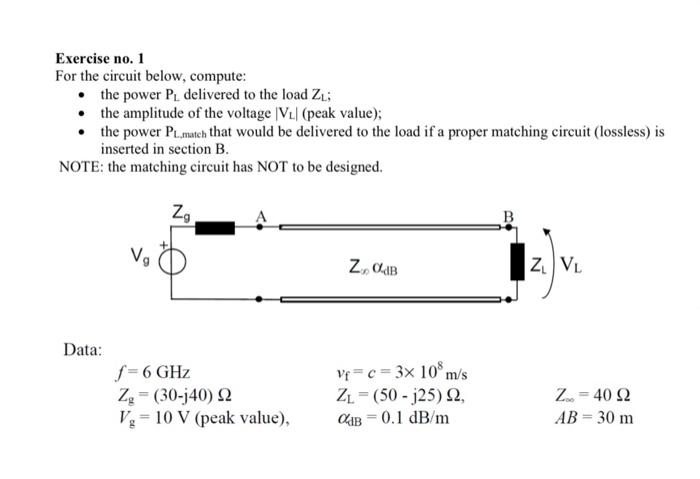

Exercise no. 1 For the circuit below, compute: • the power P. delivered to the load Z; • the amplitude of the voltage |V/ (peak value); • the power Pu.match that would be delivered to the load if a proper matching circuit (lossless) is inserted in section B. NOTE: the matching circuit has NOT to be designed. Zg Vo Z OLUB Z VL Data: f=6 GHz Z = (30-j40) 2 V = 10 V (peak value), vp = c= 3x 10 m/s ZL=(50 - 125) 92, OB = 0.1 dB/m Ζ. = 40 Ω AB = 30 m
