Please do either mesh or nodal analysis on this circuit to verify that the amperage readings shown are correct. The LED'

Post by answerhappygod »

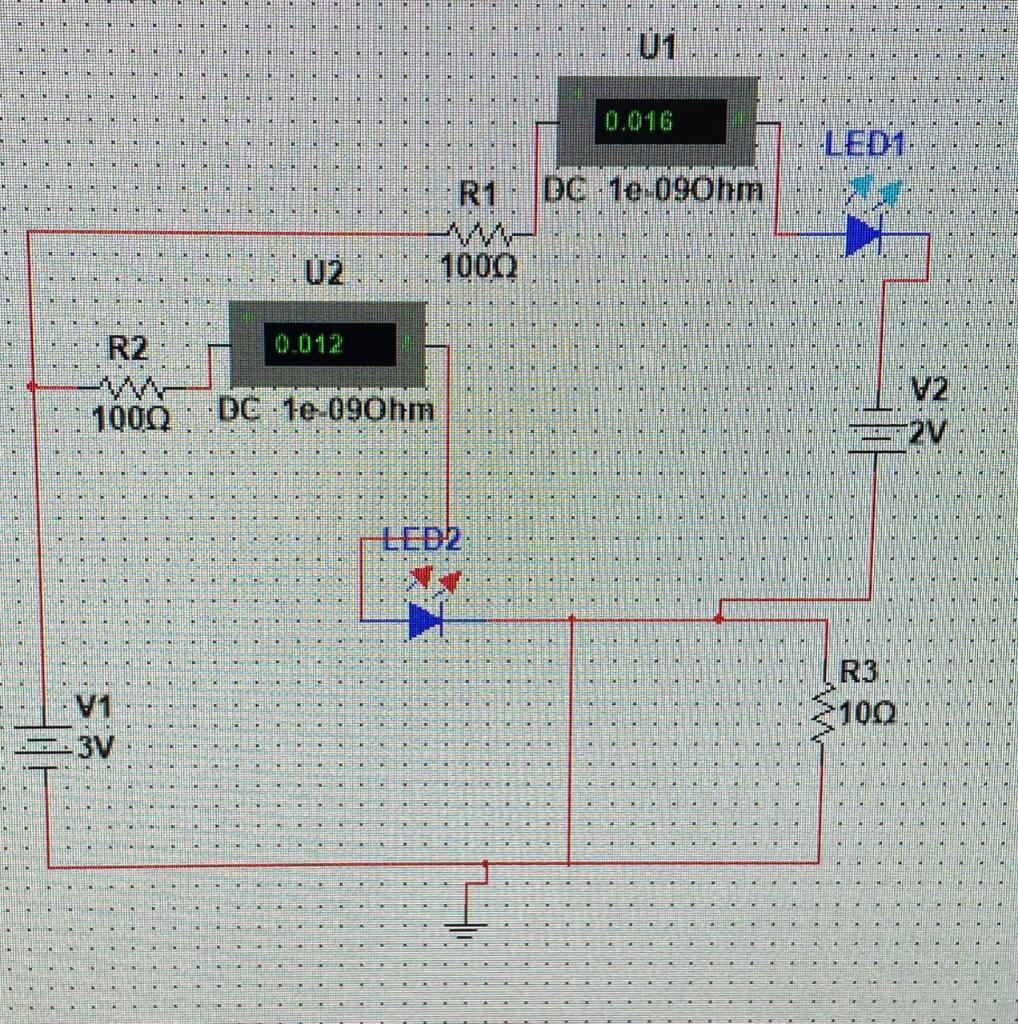

Please do either mesh or nodal analysis on this circuit to
verify that the amperage readings shown are correct. The LED's are
known to be 2V drop. Note the two sources of voltage.
Please Do Either Mesh Or Nodal Analysis On This Circuit To Verify That The Amperage Readings Shown Are Correct The Led 1
Please Do Either Mesh Or Nodal Analysis On This Circuit To Verify That The Amperage Readings Shown Are Correct The Led 1 (300.23 KiB) Viewed 21 times
N NE R1 DC - 18.090hm U2 1000 R2 V2 1000 DC .1e-090hin -2V LED2 V1 5.3V R3: 100 I
