Question 1 (a) The memory mapping arrangements of four memory devices in a microcontroller is given as Your Device RAM R

Post by answerhappygod »

Question 1 A The Memory Mapping Arrangements Of Four Memory Devices In A Microcontroller Is Given As Your Device Ram R 1
Question 1 A The Memory Mapping Arrangements Of Four Memory Devices In A Microcontroller Is Given As Your Device Ram R 1 (53.72 KiB) Viewed 23 times

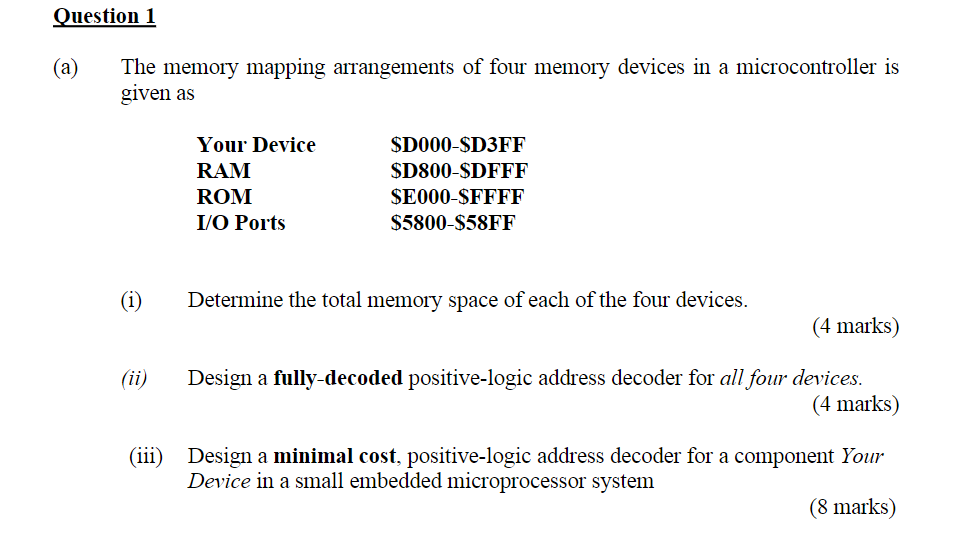

Question 1 (a) The memory mapping arrangements of four memory devices in a microcontroller is given as Your Device RAM ROM I/O Ports $D000-SD3FF $D800-SDFFF SE000-$FFFF $5800-$58FF (i) Determine the total memory space of each of the four devices. (4 marks) (ii) Design a fully-decoded positive-logic address decoder for all four devices. (4 marks) (iii) Design a minimal cost, positive-logic address decoder for a component Your Device in a small embedded microprocessor system (8 marks)
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
