Solve with steps especially with calculating I load because i cannot figure out how to calculate the polar form and rectangular form correctly. thank you
Solve With Steps Especially With Calculating I Load Because I Cannot Figure Out How To Calculate The Polar Form And Rect 1 (29.52 KiB) Viewed 17 times
Solve With Steps Especially With Calculating I Load Because I Cannot Figure Out How To Calculate The Polar Form And Rect 2 (29.52 KiB) Viewed 17 times

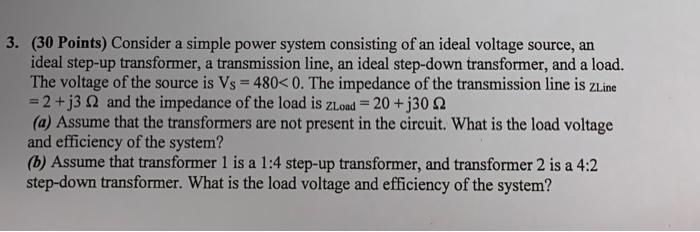

a 3. (30 Points) Consider a simple power system consisting of an ideal voltage source, an ideal step-up transformer, a transmission line, an ideal step-down transformer, and a load. The voltage of the source is Vs = 480<0. The impedance of the transmission line is zLine = 2 +j3Q and the impedance of the load is zload = 20 + j3022 (a) Assume that the transformers are not present in the circuit. What is the load voltage and efficiency of the system? (b) Assume that transformer 1 is a 1:4 step-up transformer, and transformer 2 is a 4:2 step-down transformer. What is the load voltage and efficiency of the system?
