For the tuned oscillator as shown below, determine the circuit oscillation frequency, given the values L1 = 2.5mH, L2 =

Post by answerhappygod »

For The Tuned Oscillator As Shown Below Determine The Circuit Oscillation Frequency Given The Values L1 2 5mh L2 1
For The Tuned Oscillator As Shown Below Determine The Circuit Oscillation Frequency Given The Values L1 2 5mh L2 1 (23.99 KiB) Viewed 20 times

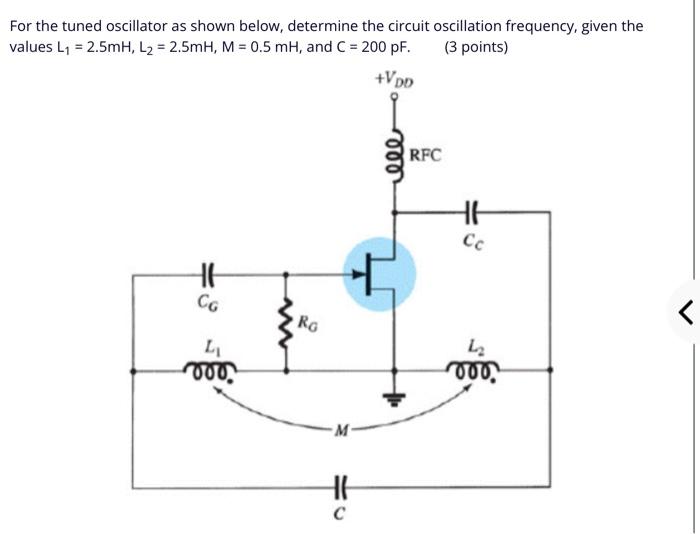

For the tuned oscillator as shown below, determine the circuit oscillation frequency, given the values L1 = 2.5mH, L2 = 2.5mH, M = 0.5 mH, and C = 200 pF. (3 points) +Vpp 000 RFC HE CC H CG ( RG L 000. L 000, M !! с
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
