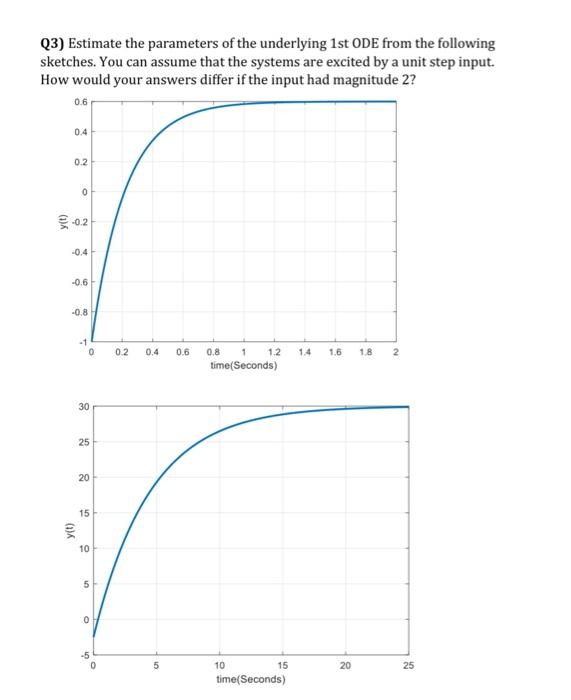

Q3) Estimate the parameters of the underlying 1st ODE from the following sketches. You can assume that the systems are excited by a unit step input. How would your answers differ if the input had magnitude 2? 0.6 0.4 0.2 o -0.2 -0.4 -0.6 -0.8 -1 0 02 0.4 0.6 1 1.4 1.6 18 2 0.8 1.2 time(Seconds) 30 25 20 15 У(0) 10 5 0 -5 0 5 20 25 10 15 time(Seconds)
