Below is a BJT circuit with two inputs A and B and an output C; which logic gate does it represent? Given R, = R2 = 10 k

Post by answerhappygod »

Below Is A Bjt Circuit With Two Inputs A And B And An Output C Which Logic Gate Does It Represent Given R R2 10 K 1
Below Is A Bjt Circuit With Two Inputs A And B And An Output C Which Logic Gate Does It Represent Given R R2 10 K 1 (22.68 KiB) Viewed 27 times

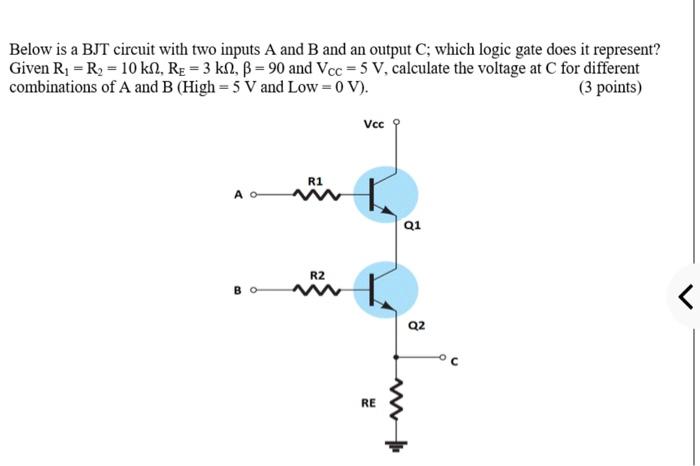

Below is a BJT circuit with two inputs A and B and an output C; which logic gate does it represent? Given R, = R2 = 10 kN, Re = 3 k12, B = 90 and Vcc=5 V, calculate the voltage at C for different combinations of A and B (High = 5 V and Low = 0 V). (3 points) Vcc R1 . t. Q1 R2 < < Q2 RE
