among with matlab command

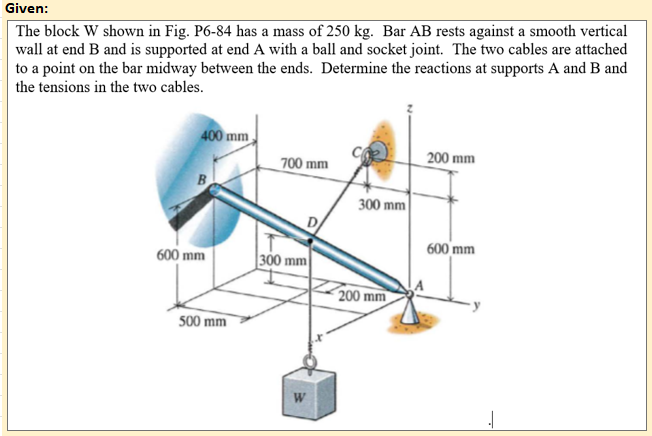

Given: The block W shown in Fig. P6-84 has a mass of 250 kg. Bar AB rests against a smooth vertical wall at end B and is supported at end A with a ball and socket joint. The two cables are attached to a point on the bar midway between the ends. Determine the reactions at supports A and B and the tensions in the two cables. 400 mm 700 mm 200 mm 300 mm 600 mm 600 mm 300 mm 200 mm 500 mm W
