Given the loading shown in the figure. Determine; a) The free body diagram of AB b) The symbolic equations of equilibriu

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Given the loading shown in the figure. Determine; a) The free body diagram of AB b) The symbolic equations of equilibriu

Post by answerhappygod »

Given The Loading Shown In The Figure Determine A The Free Body Diagram Of Ab B The Symbolic Equations Of Equilibriu 1
Given The Loading Shown In The Figure Determine A The Free Body Diagram Of Ab B The Symbolic Equations Of Equilibriu 1 (48.47 KiB) Viewed 81 times

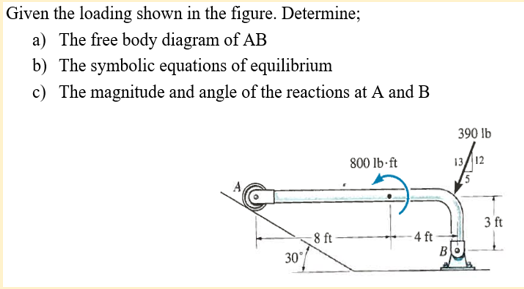

Given the loading shown in the figure. Determine; a) The free body diagram of AB b) The symbolic equations of equilibrium c) The magnitude and angle of the reactions at A and B 390 lb 800 lb-ft 13/12 3 ft 8 ft 4 ft BB 307
