Program: 6-89 A beam is supported by a ball-and-socket joint and two cables as shown in Fig. P6-89. Determine the reacti
-
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
Program: 6-89 A beam is supported by a ball-and-socket joint and two cables as shown in Fig. P6-89. Determine the reacti

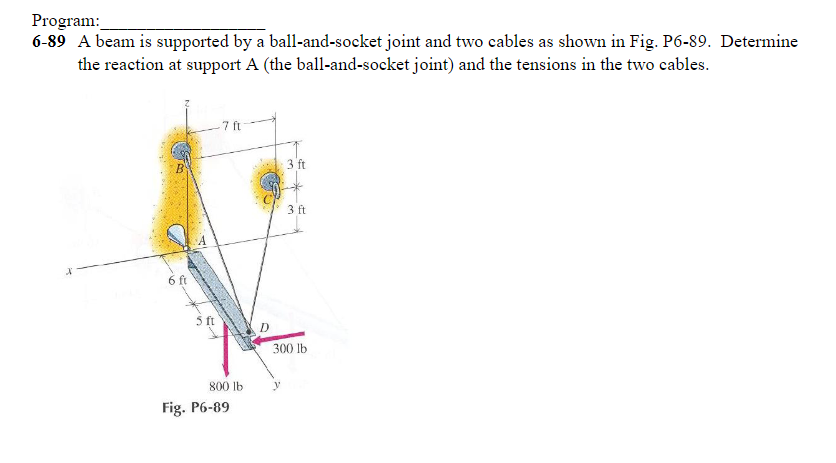

Program: 6-89 A beam is supported by a ball-and-socket joint and two cables as shown in Fig. P6-89. Determine the reaction at support A (the ball-and-socket joint) and the tensions in the two cables. 7 ft B 3 ft 3 ft 6 ft 5 ft 300 lb 800 lb Fig. P6-89
