6-78 The bent bar shown in Fig. P6-78 is supported with two brackets. Assume the brackets do not exert axial loads. End

[answerhappygod]

6 78 The Bent Bar Shown In Fig P6 78 Is Supported With Two Brackets Assume The Brackets Do Not Exert Axial Loads End 1 (94.48 KiB) Viewed 60 times

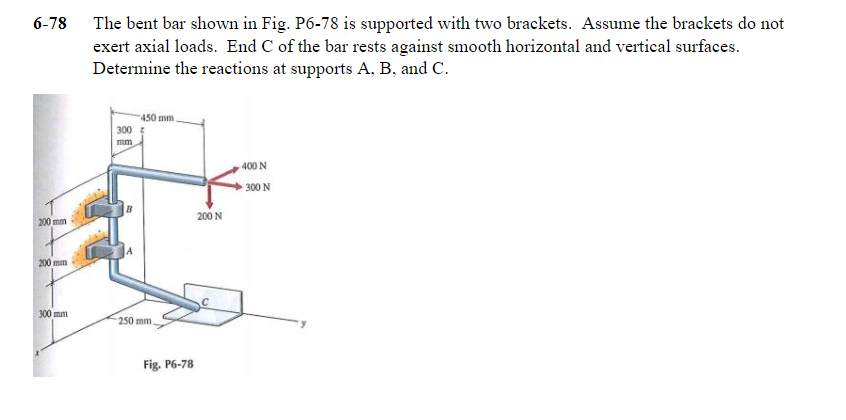

6-78 The bent bar shown in Fig. P6-78 is supported with two brackets. Assume the brackets do not exert axial loads. End C of the bar rests against smooth horizontal and vertical surfaces. Determine the reactions at supports A, B, and C. 450 mm 300 mm 400 N 300 N 200 N 200 mm 200 mm 300 mm 250 mm Fig. P6-78
