35. In Fig. 9.47, a long, straight conductor perpendicular to the plane of the paper carries an electric current i. A ba

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

35. In Fig. 9.47, a long, straight conductor perpendicular to the plane of the paper carries an electric current i. A ba

Post by answerhappygod »

35 In Fig 9 47 A Long Straight Conductor Perpendicular To The Plane Of The Paper Carries An Electric Current I A Ba 1
35 In Fig 9 47 A Long Straight Conductor Perpendicular To The Plane Of The Paper Carries An Electric Current I A Ba 1 (64.82 KiB) Viewed 74 times

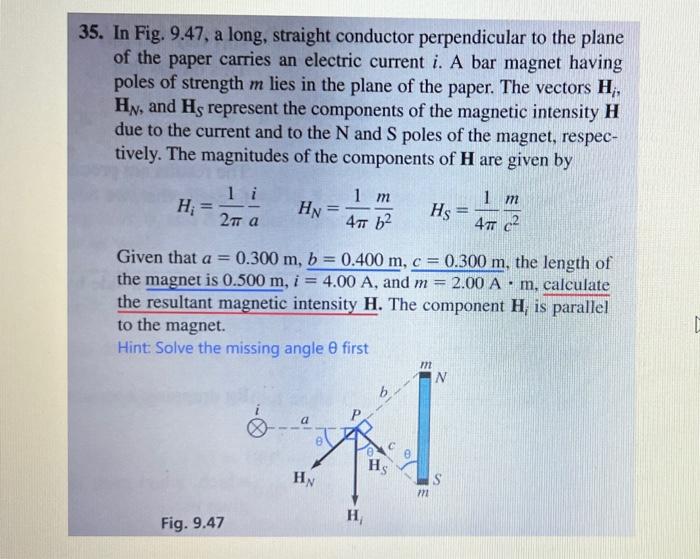

35. In Fig. 9.47, a long, straight conductor perpendicular to the plane of the paper carries an electric current i. A bar magnet having poles of strength m lies in the plane of the paper. The vectors H, Hy, and Hs represent the components of the magnetic intensity H due to the current and to the N and S poles of the magnet, respec- tively. The magnitudes of the components of H are given by 1 m H; 1 i 2πα HN 1 m 4т 2 HS 41 c2 Given that a=0.300 m, b = 0.400 m, c = 0.300 m, the length of the magnet is 0.500 m, i = 4.00 A, and m = 2.00 A. m, calculate the resultant magnetic intensity H. The component H, is parallel to the magnet. Hint Solve the missing angle first IN [ m a 제 H HN S m Fig. 9.47 H
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
