Problem No: Two pulses on a string, both traveling at 10 m/s are approaching each other at t=0 sec as shown below in the

[answerhappygod]

Problem No Two Pulses On A String Both Traveling At 10 M S Are Approaching Each Other At T 0 Sec As Shown Below In The 1 (41.32 KiB) Viewed 131 times

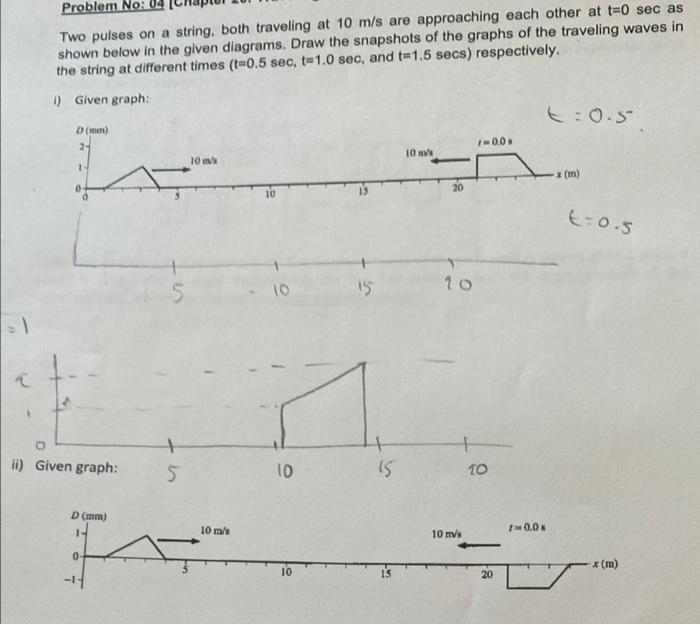

Problem No: Two pulses on a string, both traveling at 10 m/s are approaching each other at t=0 sec as shown below in the given diagrams. Draw the snapshots of the graphs of the traveling waves in the string at different times (t=0.5 sec, t=1.0 sec, and t#1.5 secs) respectively, D) Given graph: t:0.5 (mm) 2- 10.03 10 10 m 1 (m) 20 10 t=0.5 5 10 15 10 O ii) Given graph: + S 10 15 10 D (mm) 1- 10 m/s 10.08 10 m's * (m) 10 20
