Question 3 (30 points): Consider the figure below, which shows the steady-state QFLs vs. position for a Si structure wit

Post by answerhappygod »

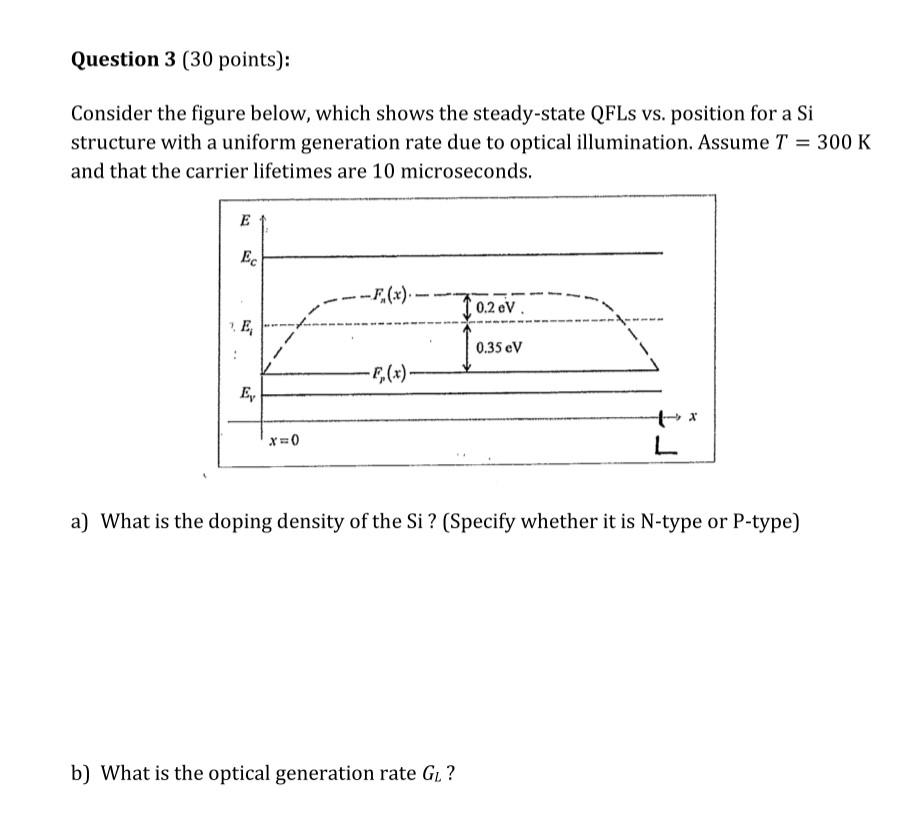

Question 3 30 Points Consider The Figure Below Which Shows The Steady State Qfls Vs Position For A Si Structure Wit 1
Question 3 30 Points Consider The Figure Below Which Shows The Steady State Qfls Vs Position For A Si Structure Wit 1 (52.7 KiB) Viewed 65 times
Question 3 (30 points): Consider the figure below, which shows the steady-state QFLs vs. position for a Si structure with a uniform generation rate due to optical illumination. Assume T = 300 K and that the carrier lifetimes are 10 microseconds. E EC -F.(x). 0.2 eV E 0.35 eV F(x) E x=0 L a) What is the doping density of the Si ? (Specify whether it is N-type or P-type) b) What is the optical generation rate GL ?
