Steel, Brass, and Copper rods are connected as shown in the figure. Initially, the temperature was 15 degrees Celsius an

[answerhappygod]

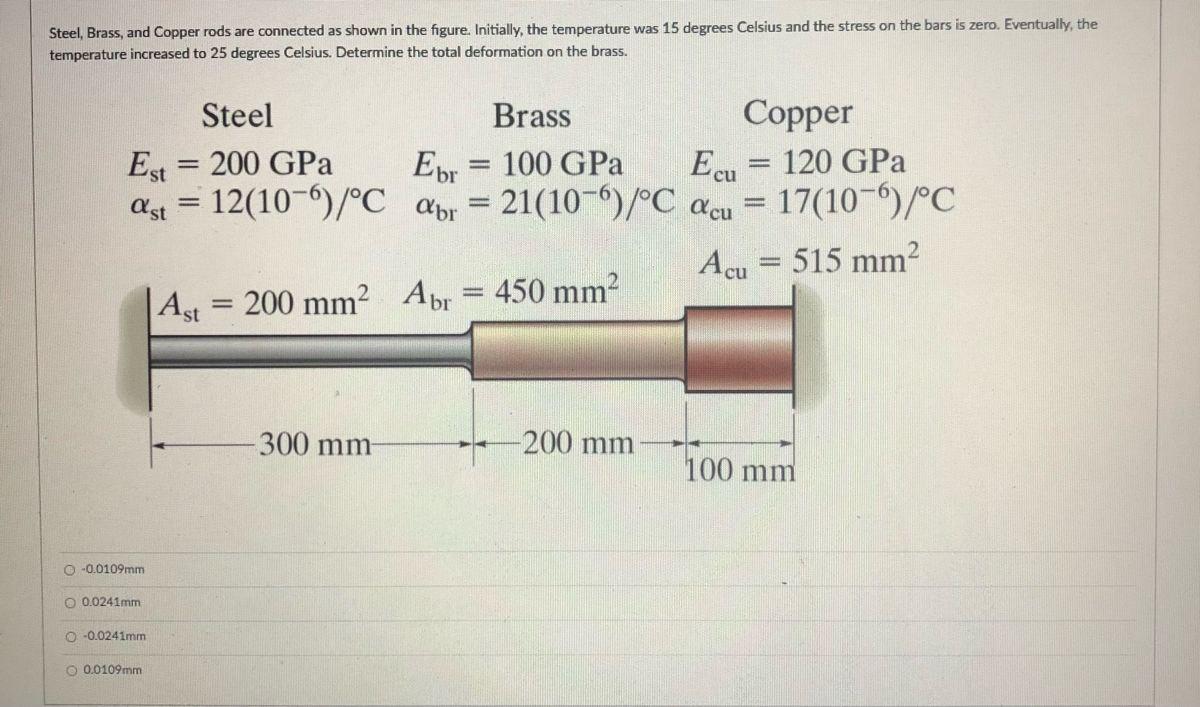

Steel Brass And Copper Rods Are Connected As Shown In The Figure Initially The Temperature Was 15 Degrees Celsius An 1 (119.86 KiB) Viewed 53 times

Steel, Brass, and Copper rods are connected as shown in the figure. Initially, the temperature was 15 degrees Celsius and the stress on the bars is zero. Eventually, the temperature increased to 25 degrees Celsius. Determine the total deformation on the brass. . Steel Brass Copper Est = 200 GPa Ebr 100 GPa Ecu 120 GPa 12(10-)/°C Apr = 21(10-)/°C Acu = 17(10-)/°C Acu = 515 mm 200 mm Abr = 450 mm ast Ast 300 mm 200 mm 100 mm -0.0109mm 0 0.0241mm Ο Ο Ο Ο 0 -0.0241mm 0.0109mm
