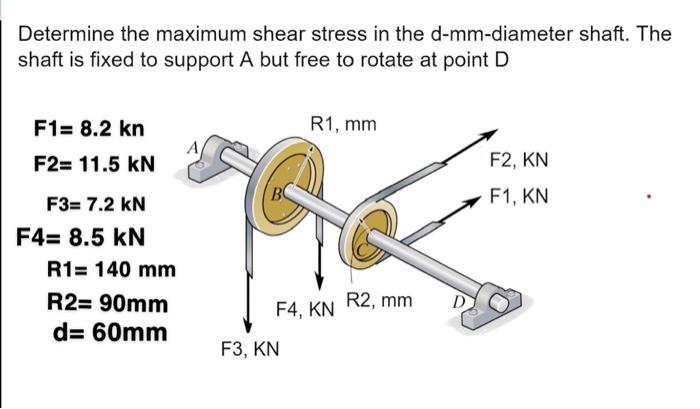

Determine the maximum shear stress in the d-mm-diameter shaft. The shaft is fixed to support A but free to rotate at point D F1= 8.2 kn R1, mm F2= 11.5 kN F2, KN F1, KN F3= 7.2 KN F4= 8.5 kN R1= 140 mm R2= 90mm d= 60mm F4, KN R2, mm F3, KN
