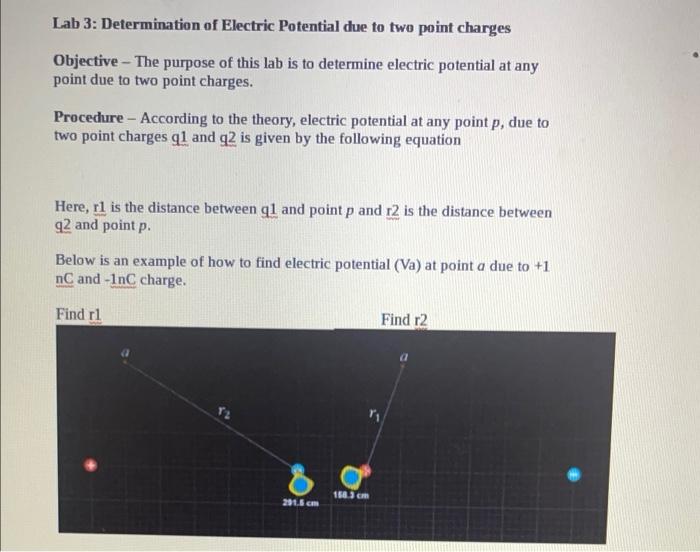

Lab 3: Determination of Electric Potential due to two point charges Objective - The purpose of this lab is to determine electric potential at any point due to two point charges. Procedure - According to the theory, electric potential at any point p, due to two point charges q1 and q2 is given by the following equation Here, rl is the distance between q1 and point p and r2 is the distance between q2 and point p. Below is an example of how to find electric potential (Va) at point a due to +1 nC and -1nC charge. Find r1 Find r2 1543 2018

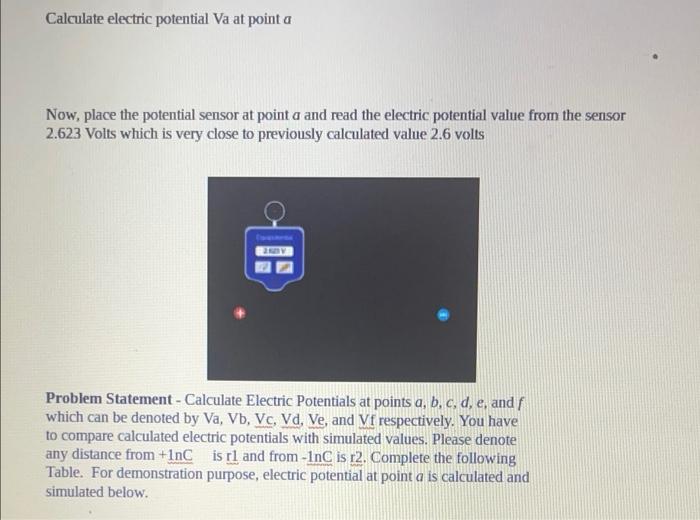

Calculate electric potential Va at point a Now, place the potential sensor at point a and read the electric potential value from the sensor 2.623 Volts which is very close to previously calculated value 2.6 volts Problem Statement - Calculate Electric Potentials at points a, b, c, d, e, and which can be denoted by Va, Vb, Vc, Va, Ve, and Vf respectively. You have to compare calculated electric potentials with simulated values. Please denote any distance from +1nC is rl and from -InC is r2. Complete the following Table. For demonstration purpose, electric potential at point a is calculated and simulated below.

Problem Statement - Calculate Electric Potentials at points a, b, c, d, e, and which can be denoted by Va, Vb, Vc, Vd, Ve, and Vf respectively. You have to compare calculated electric potentials with simulated values. Please denote any distance from +1nC is rl and from-InC is r2. Complete the following Table. For demonstration purpose, electric potential at point a is calculated and simulated below. inc -inc 1meter

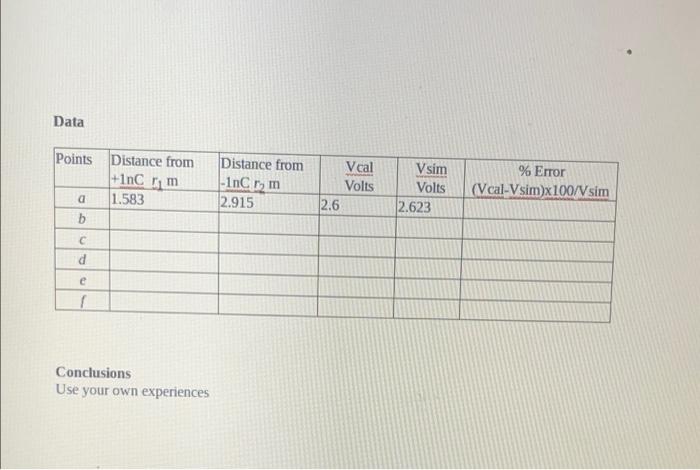

Data Points Distance from +inCam a 1.583 b Distance from -InCrym 2.915 Vcal Volts Vsim Volts 2.623 % Error (Vcal-Vsim)x100/Vsim 2.6 c d e Conclusions Use your own experiences
