1. A composite axial structure consists of two rods joined at flange B. Rods (1) and (2) are attached to rigid supports

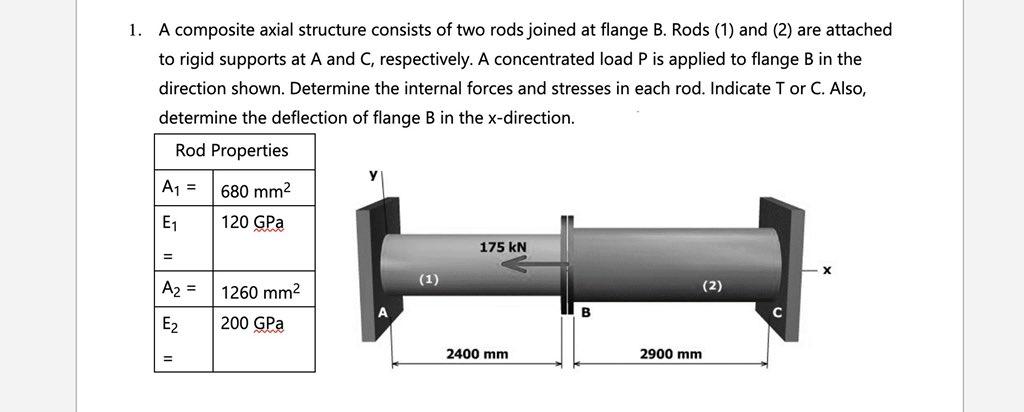

1. A composite axial structure consists of two rods joined at flange B. Rods (1) and (2) are attached to rigid supports at A and C, respectively. A concentrated load P is applied to flange B in the direction shown. Determine the internal forces and stresses in each rod. Indicate T or C. Also, determine the deflection of flange B in the x-direction. Rod Properties A1 = 680 mm2 E1 120 GPa 175 KN (1) A2 = (2) 1260 mm2 B E2 200 GPa 2400 mm 2900 mm
