To study, analyze and design different impedance matching circuits i.e., L-network, Single stub, double stub, single sec

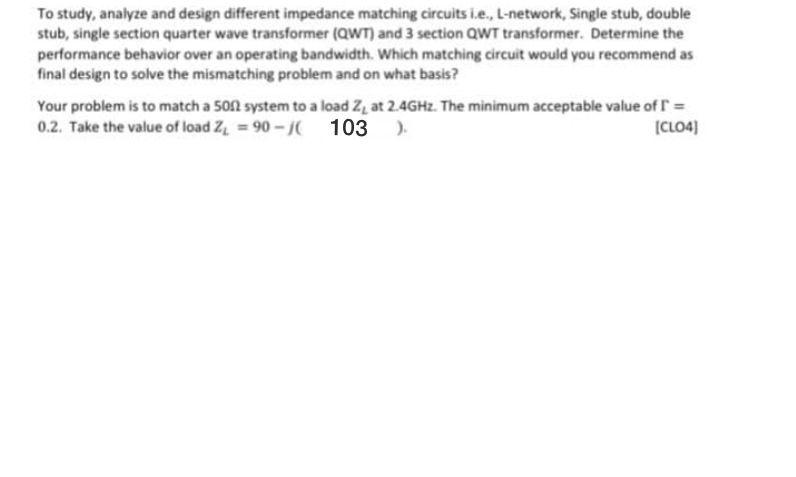

To study, analyze and design different impedance matching circuits i.e., L-network, Single stub, double stub, single section quarter wave transformer (QWT) and 3 section QWT transformer. Determine the performance behavior over an operating bandwidth. Which matching circuit would you recommend as final design to solve the mismatching problem and on what basis? Your problem is to match a 50N system to a load 2 at 2.4GHz. The minimum acceptable value of r = 0.2. Take the value of load 2 = 90-16 103 103 ) ICLO4)
