Given data The venturi meter is given with pressure boundary conditions where P1 = 8000 pa P2 = 0 pa The representative

[answerhappygod]

Given Data The Venturi Meter Is Given With Pressure Boundary Conditions Where P1 8000 Pa P2 0 Pa The Representative 1 (43.66 KiB) Viewed 62 times

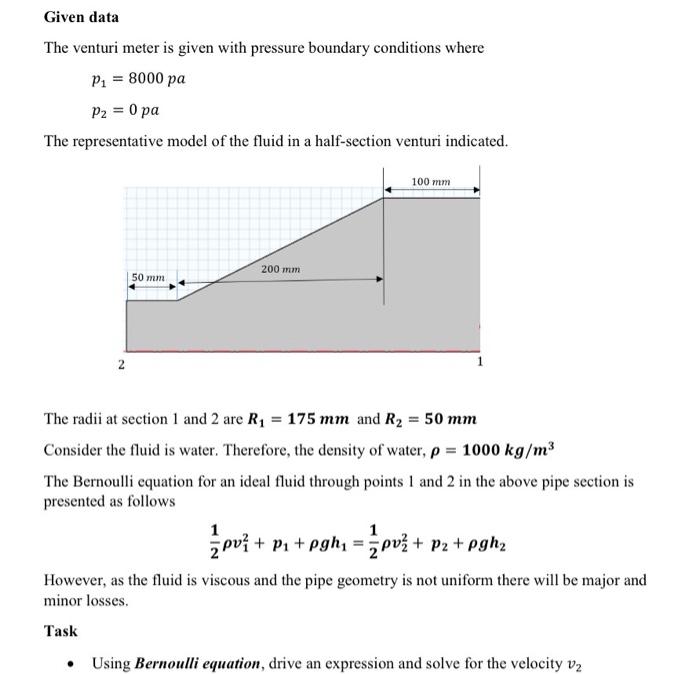

Given data The venturi meter is given with pressure boundary conditions where P1 = 8000 pa P2 = 0 pa The representative model of the fluid in a half-section venturi indicated. 100 mm 200 mm 50 mm 2 The radii at section 1 and 2 are R1 = 175 mm and R2 = 50 mm Consider the fluid is water. Therefore, the density of water, p = 1000 kg/m3 The Bernoulli equation for an ideal fluid through points 1 and 2 in the above pipe section is presented as follows z pv} + p1+pghz = puż + pz +pghz However, as the fluid is viscous and the pipe geometry is not uniform there will be major and minor losses Task 1 . Using Bernoulli equation, drive an expression and solve for the velocity V2
