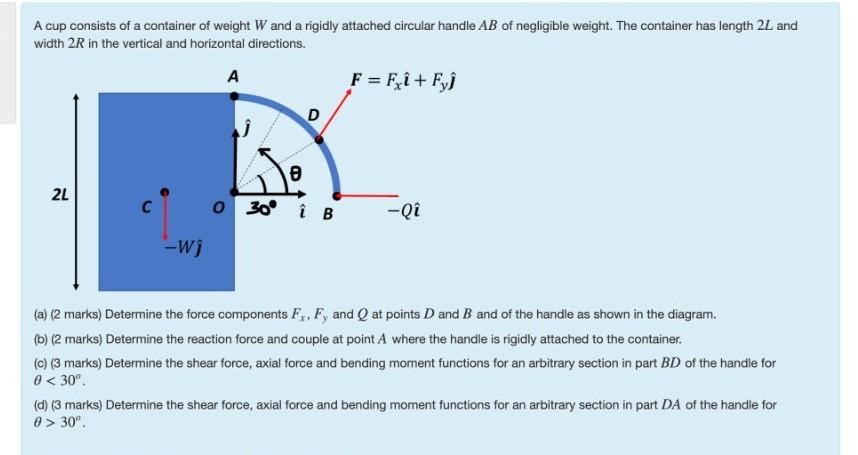

A cup consists of a container of weight and a rigidly attached circular handle AB of negligible weight. The container has length 2L and width 2R in the vertical and horizontal directions. A F = Fi + Fyj D D 0 21 с o 30° î B -Qî -W; (a) (2 marks) Determine the force components Fr, F, and Q at points D and B and of the handle as shown in the diagram. (b) (2 marks) Determine the reaction force and couple at point A where the handle is rigidly attached to the container. (C) (3 marks) Determine the shear force, axial force and bending moment functions for an arbitrary section in part BD of the handle for 0 < 30° (d) (3 marks) Determine the shear force, axial force and bending moment functions for an arbitrary section in part DA of the handle for 0 > 30°
