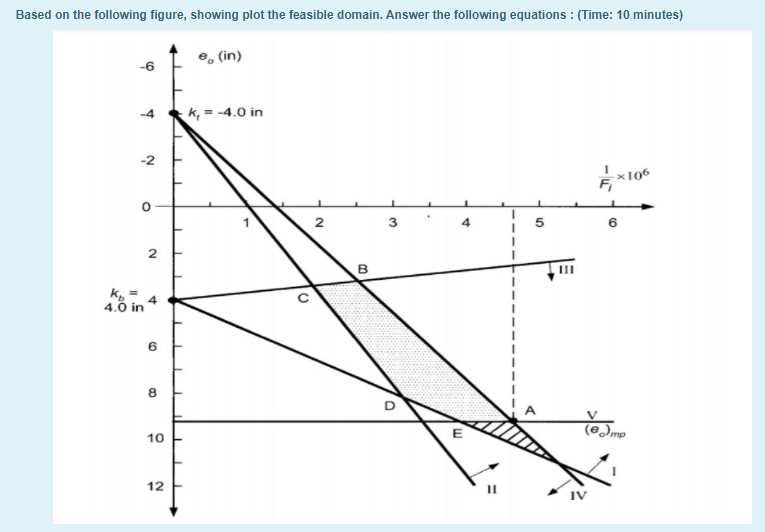

Based on the following figure, showing plot the feasible domain. Answer the following equations : (Time: 10 minutes) -6 e. (in) -4 k = -4.0 in -2 x 106 - F 0 2 3 4 an 6 2 B ko = 4.0 in 4 1 6 8 D 10 mp 12

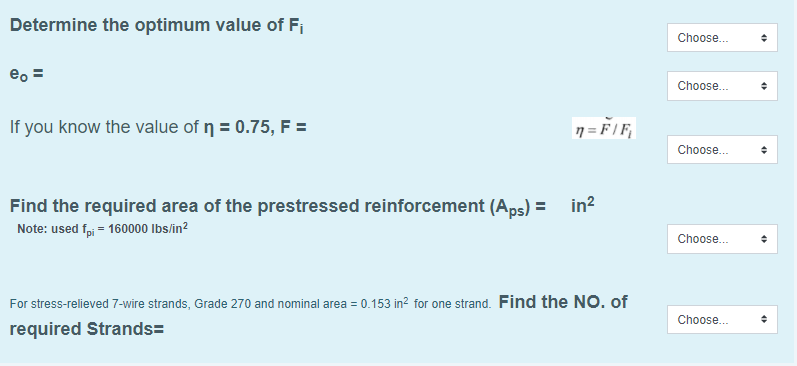

Determine the optimum value of Fj Choose... eo = Choose... If you know the value of n = 0.75, F = n=FIF Choose.. in2 Find the required area of the prestressed reinforcement (Aps) = Note: used fpi = 160000 lbs/in2 Choose.. For stress-relieved 7-wire strands, Grade 270 and nominal area = 0.153 in2 for one strand. Find the No. of required Strands= Choose...
