10 K 4.7 K M A 4.7 K 10 K A A 바 10 1 WWE 10 OR 12 contactore GND Combination circuit data Note that you will move the

[answerhappygod]

1 (31.82 KiB) Viewed 51 times

2 (45.23 KiB) Viewed 51 times

3 (37.47 KiB) Viewed 51 times

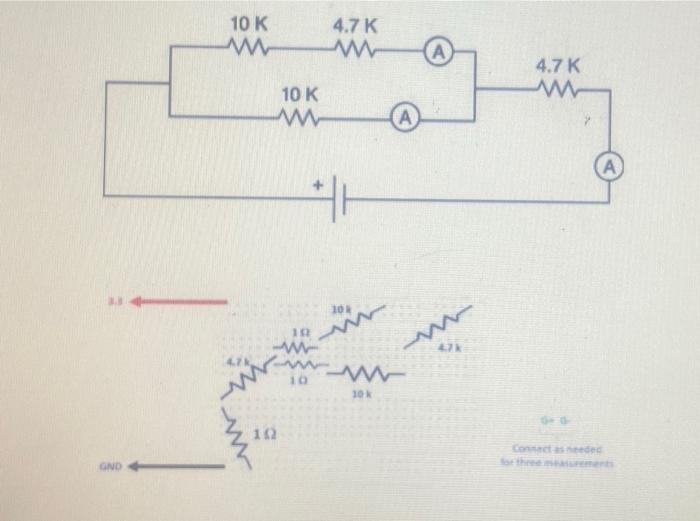

10 K 4.7 K M A 4.7 K 10 K A A 바 10 1 WWE 10 OR 12 contactore GND

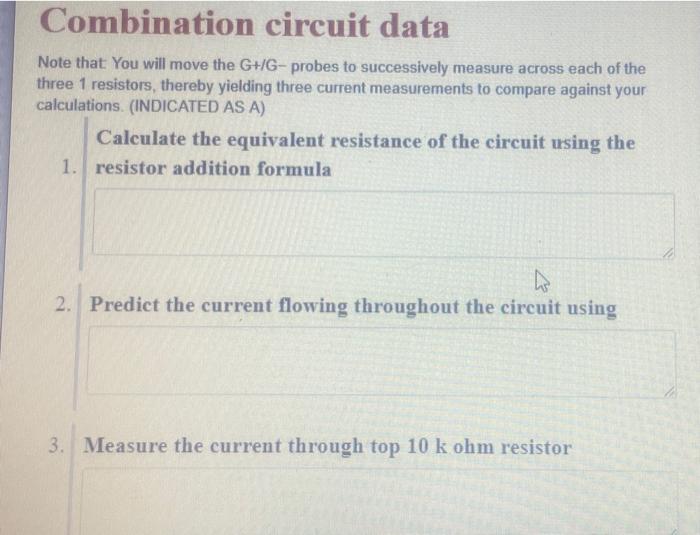

Combination circuit data Note that you will move the G+ G- probes to successively measure across each of the three 1 resistors, thereby yielding three current measurements to compare against your calculations (INDICATED AS A Calculate the equivalent resistance of the circuit using the 1. resistor addition formula h 2. Predict the current flowing throughout the circuit using 3. Measure the current through top 10 k ohm resistor

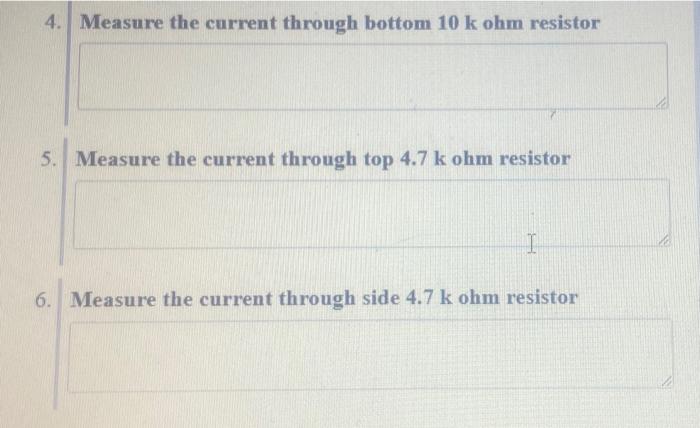

4. Measure the current through bottom 10 k ohm resistor 5. Measure the current through top 4.7 k ohm resistor I 6. Measure the current through side 4.7 k ohm resistor
