Exercise 2 The Tokamak Fusion Test Reactor is a large toroid that produces a magnetic field to confine charged particles

[answerhappygod]

Exercise 2 The Tokamak Fusion Test Reactor Is A Large Toroid That Produces A Magnetic Field To Confine Charged Particles 1 (41.46 KiB) Viewed 67 times

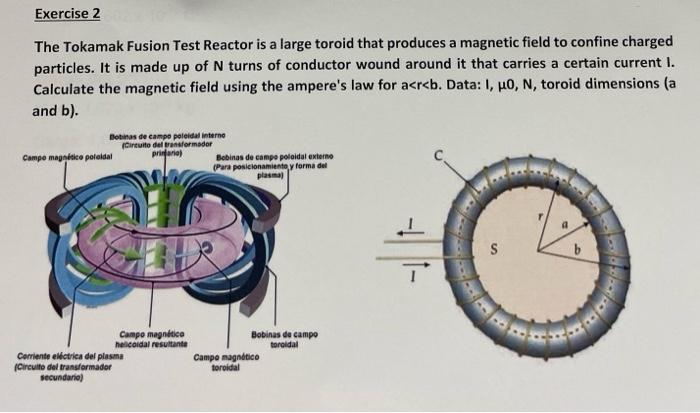

Exercise 2 The Tokamak Fusion Test Reactor is a large toroid that produces a magnetic field to confine charged particles. It is made up of N turns of conductor wound around it that carries a certain current I. Calculate the magnetic field using the ampere's law for a<r<b. Data: I, O, N, toroid dimensions (a and b). Botinas de campo poledad interne Direito del transformador Campo magnético pololdal primarie) Bobinas de campo polaidal externe Para posicionamiento y forma del plasma S b Campo magnético helicoidal resultante Corriente electrica del plasma (Circuito del transformador secundaria) Bobinas de campo toroldal Campo magnético toroidal
