Problem 1 (20 pts) Superheated steam at 350 °C flows through a pipe whose thermal conductivity is kp = 16 W/m.K. The inn

[answerhappygod]

Problem 1 20 Pts Superheated Steam At 350 C Flows Through A Pipe Whose Thermal Conductivity Is Kp 16 W M K The Inn 1 (77.11 KiB) Viewed 48 times

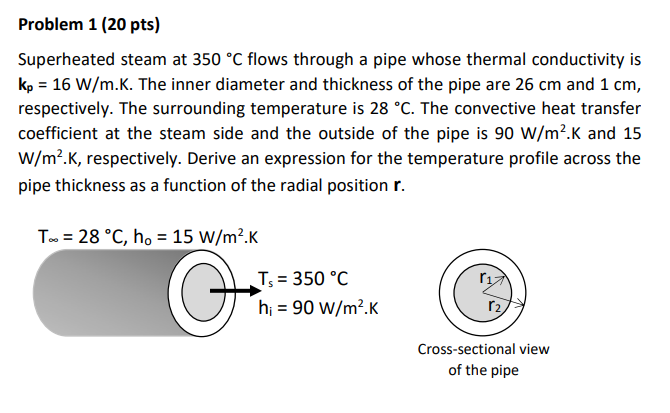

Problem 1 (20 pts) Superheated steam at 350 °C flows through a pipe whose thermal conductivity is kp = 16 W/m.K. The inner diameter and thickness of the pipe are 26 cm and 1 cm, respectively. The surrounding temperature is 28 °C. The convective heat transfer coefficient at the steam side and the outside of the pipe is 90 W/m²K and 15 W/m2.K, respectively. Derive an expression for the temperature profile across the pipe thickness as a function of the radial position r. To = 28 °C, ho = 15 W/m².K G Ts = 350 °C h; = 90 W/m².K r2 Cross-sectional view of the pipe
