As shown in Fig. 4, a steel frame with Young's modulus E=203 GPa and Poisson's ratio v=0.3 is subjected to the moment M.

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

As shown in Fig. 4, a steel frame with Young's modulus E=203 GPa and Poisson's ratio v=0.3 is subjected to the moment M.

Post by answerhappygod »

As Shown In Fig 4 A Steel Frame With Young S Modulus E 203 Gpa And Poisson S Ratio V 0 3 Is Subjected To The Moment M 1
As Shown In Fig 4 A Steel Frame With Young S Modulus E 203 Gpa And Poisson S Ratio V 0 3 Is Subjected To The Moment M 1 (26.93 KiB) Viewed 43 times

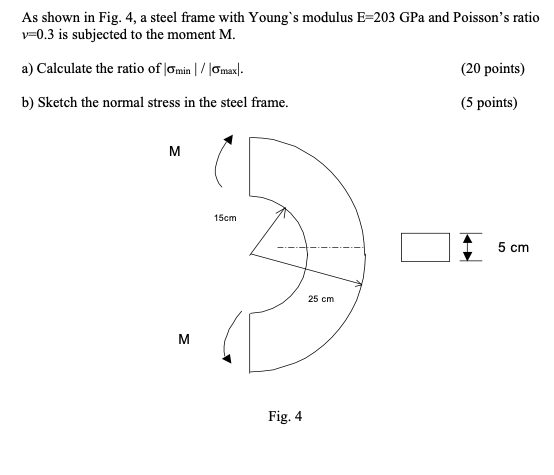

As shown in Fig. 4, a steel frame with Young's modulus E=203 GPa and Poisson's ratio v=0.3 is subjected to the moment M. a) Calculate the ratio of omin / maxl. (20 points) b) Sketch the normal stress in the steel frame. (5 points) M 15cm 5 cm 25 cm M Fig. 4
