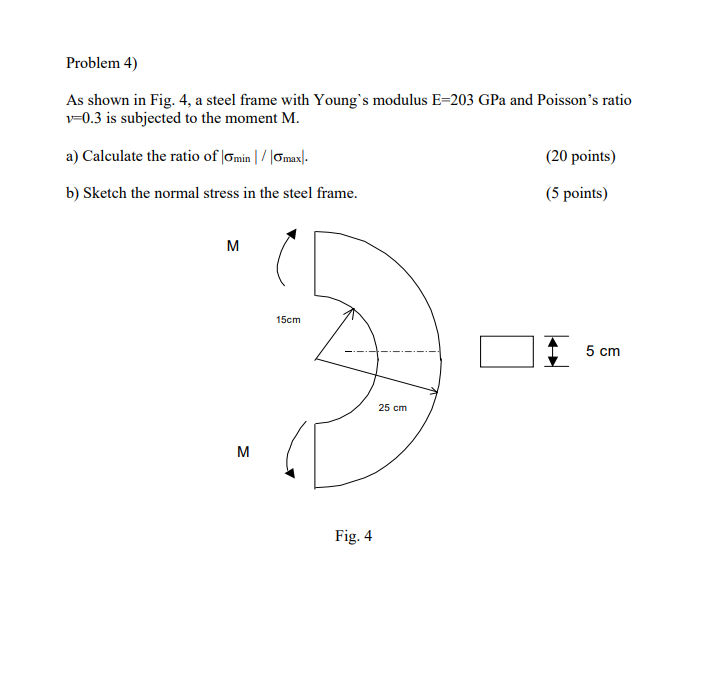

Problem 4) As shown in Fig. 4, a steel frame with Young's modulus E=203 GPa and Poisson's ratio v=0.3 is subjected to the moment M. a) Calculate the ratio of min / maxl. (20 points) b) Sketch the normal stress in the steel frame. (5 points) M M 15cm 5 cm 25 cm M M Fig. 4
