X 45 degree Fig. 2 As shown in Fig. 2, a beam is clamped on one end. The diameter of the cross section is r m and the le

[answerhappygod]

X 45 Degree Fig 2 As Shown In Fig 2 A Beam Is Clamped On One End The Diameter Of The Cross Section Is R M And The Le 1 (48.04 KiB) Viewed 45 times

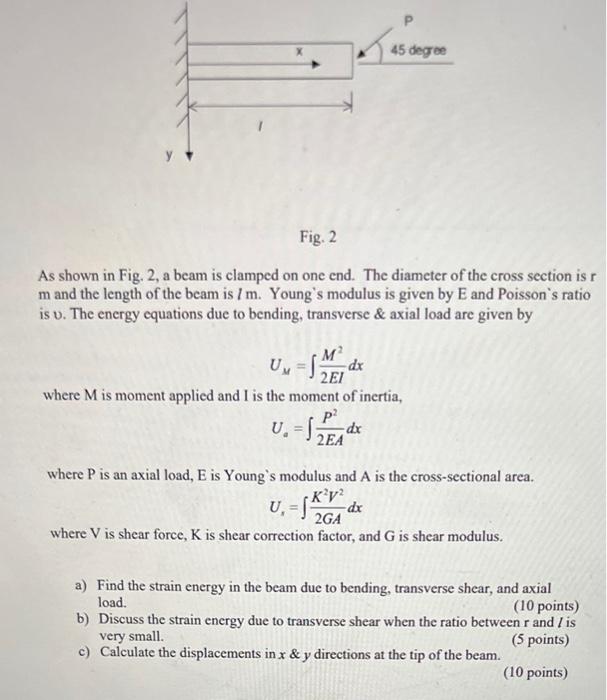

X 45 degree Fig. 2 As shown in Fig. 2, a beam is clamped on one end. The diameter of the cross section is r m and the length of the beam is / m. Young's modulus is given by E and Poisson's ratio is v. The energy equations due to bending, transverse & axial load are given by Uv-S MEIOS UM dx 2ΕΙ where M is moment applied and I is the moment of inertia, PP U. = dr 2EA where P is an axial load, E is Young's modulus and A is the cross-sectional area. Kºy UNT dx 2GA where V is shear force, K is shear correction factor, and G is shear modulus. a) Find the strain energy in the beam due to bending, transverse shear, and axial load. (10 points) b) Discuss the strain energy due to transverse shear when the ratio between r and / is very small. (5 points) c) Calculate the displacements in x & y directions at the tip of the beam. (10 points)
