150 mm Problem 5 (5.102) The tower is 70 m tall. If the tension in cable BC is 2 kN, what must be the tension in cables

[answerhappygod]

150 Mm Problem 5 5 102 The Tower Is 70 M Tall If The Tension In Cable Bc Is 2 Kn What Must Be The Tension In Cables 1 (38.54 KiB) Viewed 70 times

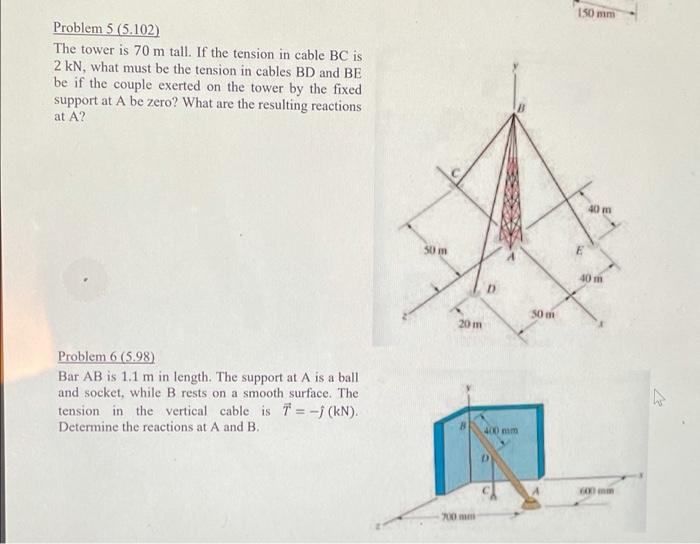

150 mm Problem 5 (5.102) The tower is 70 m tall. If the tension in cable BC is 2 kN, what must be the tension in cables BD and BE be if the couple exerted on the tower by the fixed support at A be zero? What are the resulting reactions at A? 40 m Som 10 m D 50 m 20 m Problem 6 (5.98) Bar AB is 1.1 m in length. The support at A is a ball and socket, while B rests on a smooth surface. The tension in the vertical cable is t = -1 (kN). Determine the reactions at A and B. A 400 nm nonm 200
