6. For an application it is proposed to use aluminum rivets to secure two aluminum plates edge-to-edge as depicted below

[answerhappygod]

6 For An Application It Is Proposed To Use Aluminum Rivets To Secure Two Aluminum Plates Edge To Edge As Depicted Below 1 (68.68 KiB) Viewed 50 times

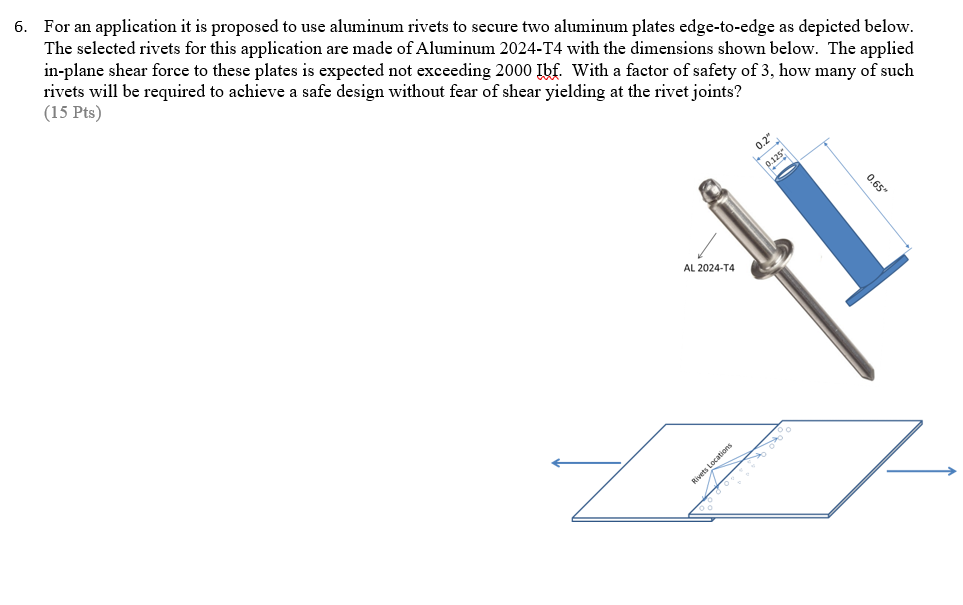

6. For an application it is proposed to use aluminum rivets to secure two aluminum plates edge-to-edge as depicted below. The selected rivets for this application are made of Aluminum 2024-T4 with the dimensions shown below. The applied in-plane shear force to these plates is expected not exceeding 2000 lbf. With a factor of safety of 3, how many of such rivets will be required to achieve a safe design without fear of shear yielding at the rivet joints? (15 Pts) 0.2" 0.125 0.65" AL 2024-T4 Z ZH Rivets Locations
