Fixed Side کودد له عدنه محمد الها 3. Two thick 10" in length are welded together as illustrated using E-30 welding elect

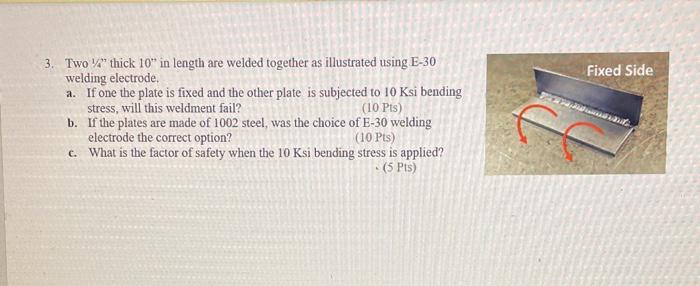

Fixed Side کودد له عدنه محمد الها 3. Two thick 10" in length are welded together as illustrated using E-30 welding electrode a. If one the plate is fixed and the other plate is subjected to 10 Ksi bending stress, will this weldment fail? (10 Pts) b. If the plates are made of 1002 steel, was the choice of E-30 welding electrode the correct option? (10 Pts) c. What is the factor of safety when the 10 ksi bending stress is applied? - (5 Pts)
