Example 8.9 A gearbox is required to transmit 18 kW from a shaft rotating at 2650 rpm. The desired output speed is appro

Post by answerhappygod »

Example 8 9 A Gearbox Is Required To Transmit 18 Kw From A Shaft Rotating At 2650 Rpm The Desired Output Speed Is Appro 1
Example 8 9 A Gearbox Is Required To Transmit 18 Kw From A Shaft Rotating At 2650 Rpm The Desired Output Speed Is Appro 1 (427.04 KiB) Viewed 51 times

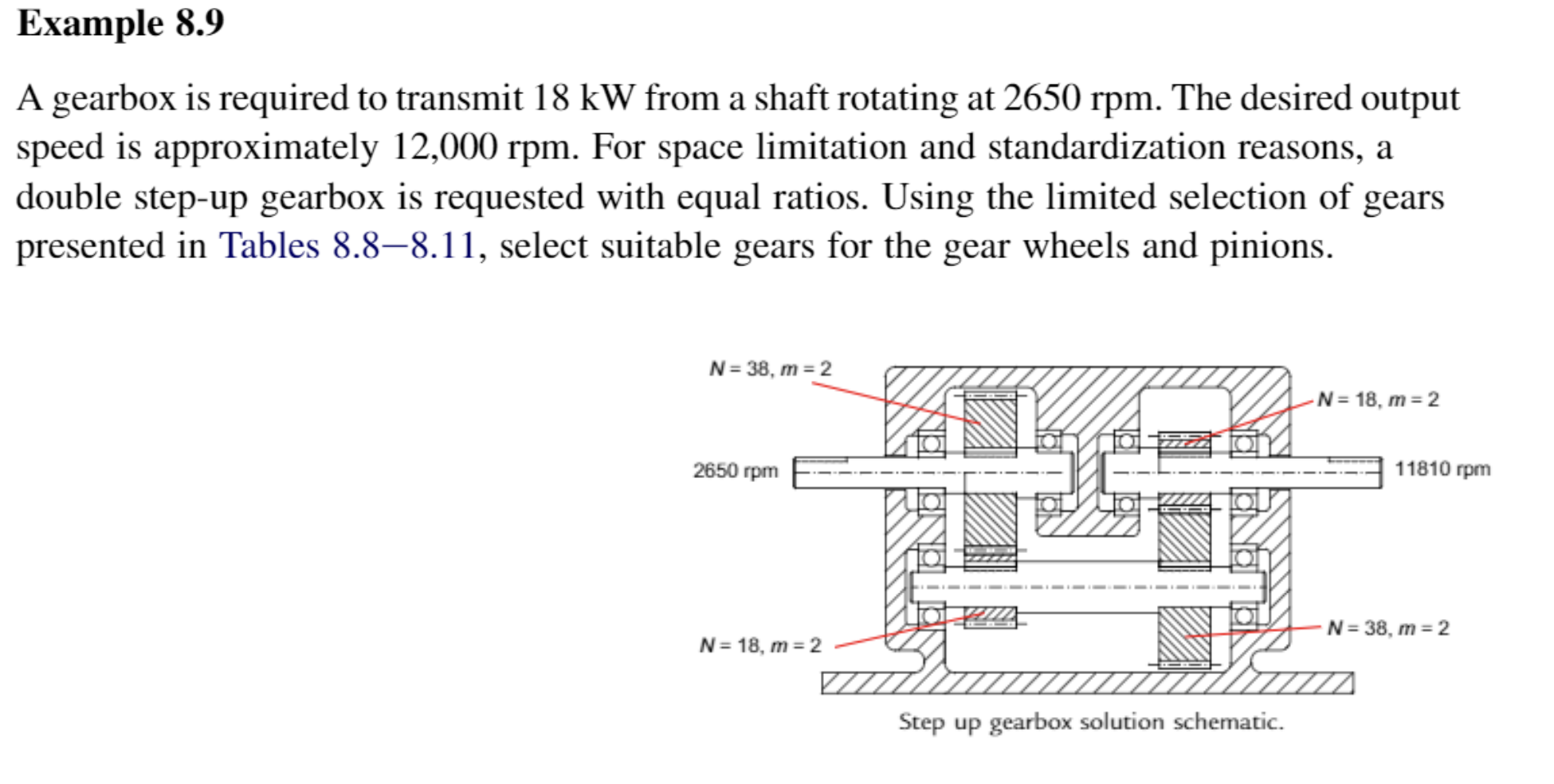

Example 8.9 A gearbox is required to transmit 18 kW from a shaft rotating at 2650 rpm. The desired output speed is approximately 12,000 rpm. For space limitation and standardization reasons, a double step-up gearbox is requested with equal ratios. Using the limited selection of gears presented in Tables 8.8–8.11, select suitable gears for the gear wheels and pinions. N = 38, m = 2 -N = 18, m= 2 2650 rpm 11810 rpm A N= 38, m = 2 N=18, m = 2 Step up gearbox solution schematic.
